Peugeot 205 GTI 1.9 - Box 1
Kit 1

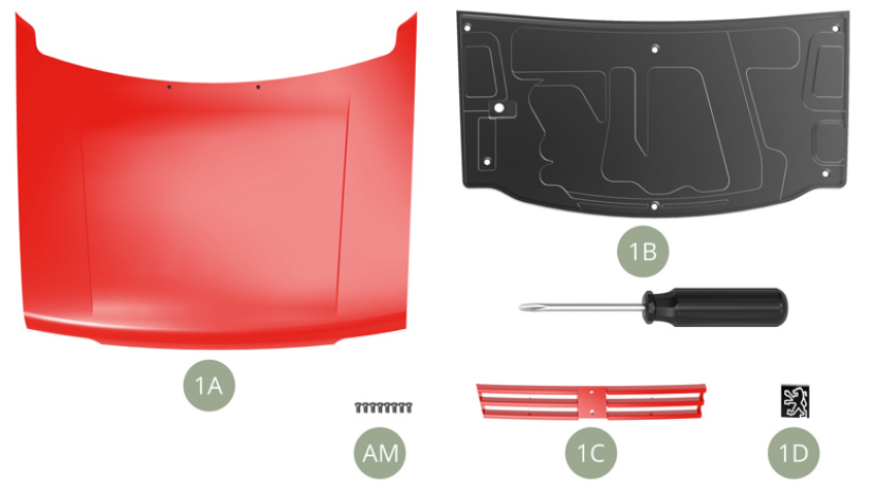

Parts of kit
- 1A Bonnet
- 1B Bonnet reinforcement
- 1C Front grille
- 1D Peugeot emblem
- Screws AM M 1,7 x 3mm (3x)
- Screwdriver
Step 1

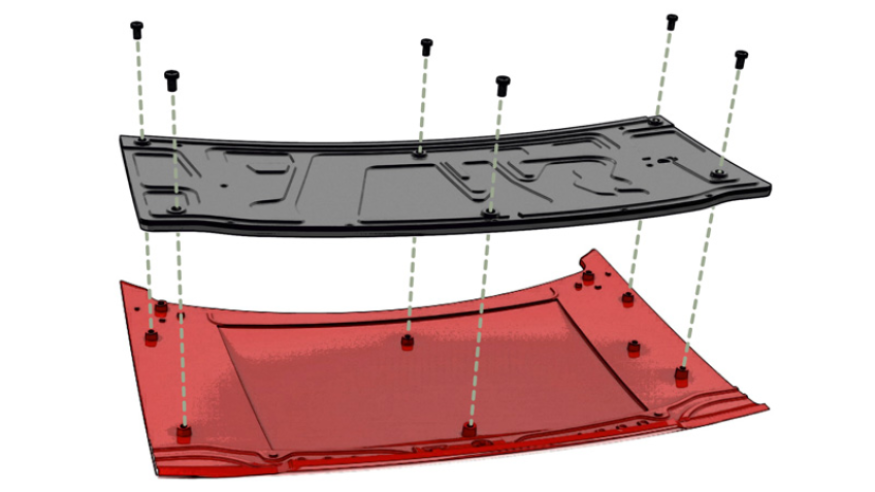

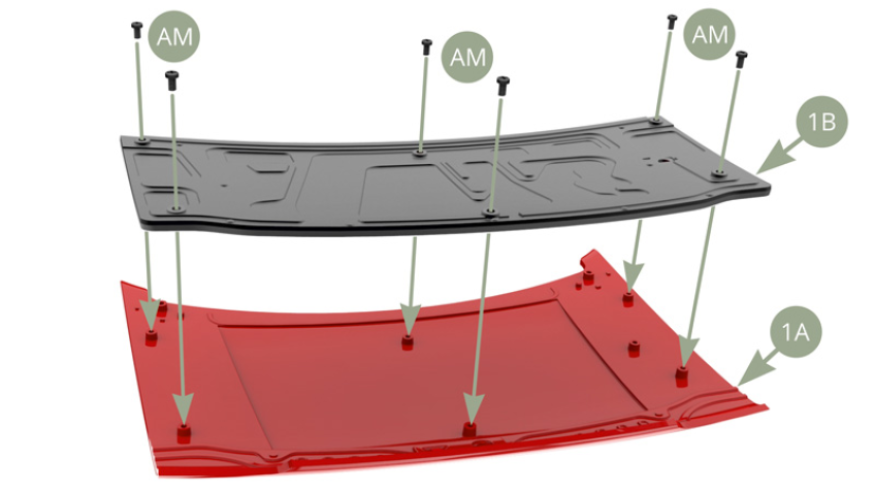

Fit 1B Bonnet reinforcement to 1A Bonnet and fix with six AM screws .

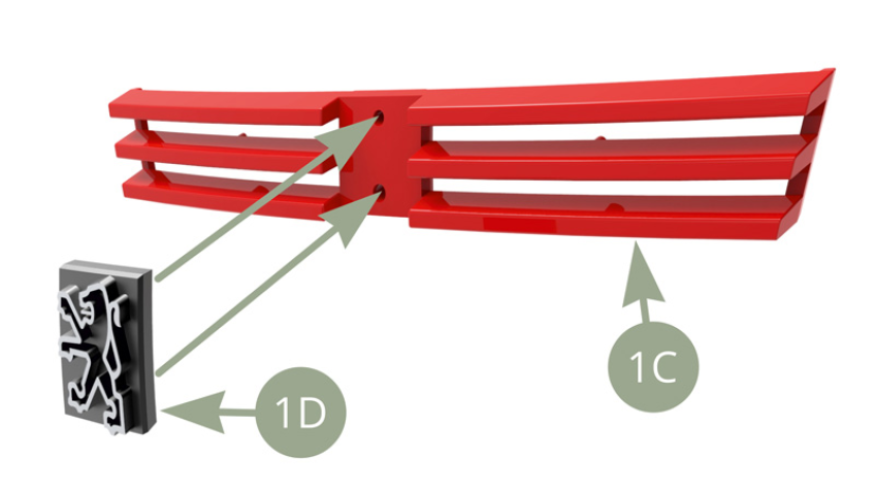

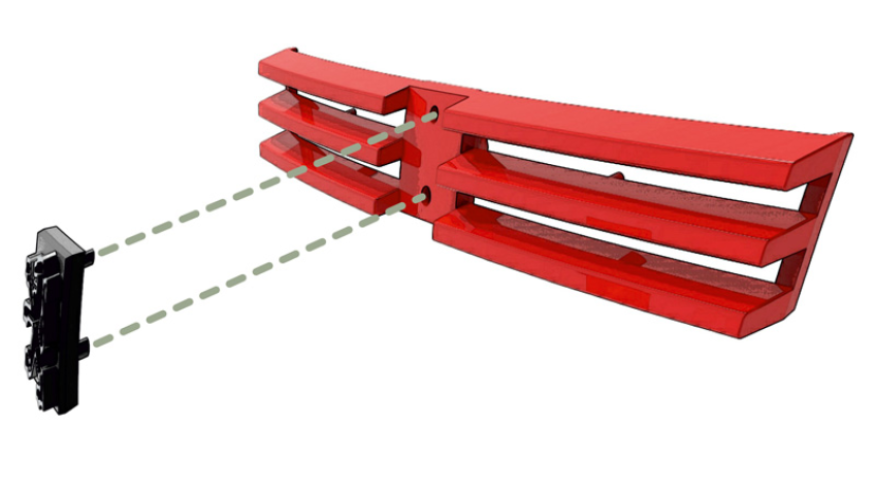

Fit 1D Peugeot emblem to 1C Front grille.

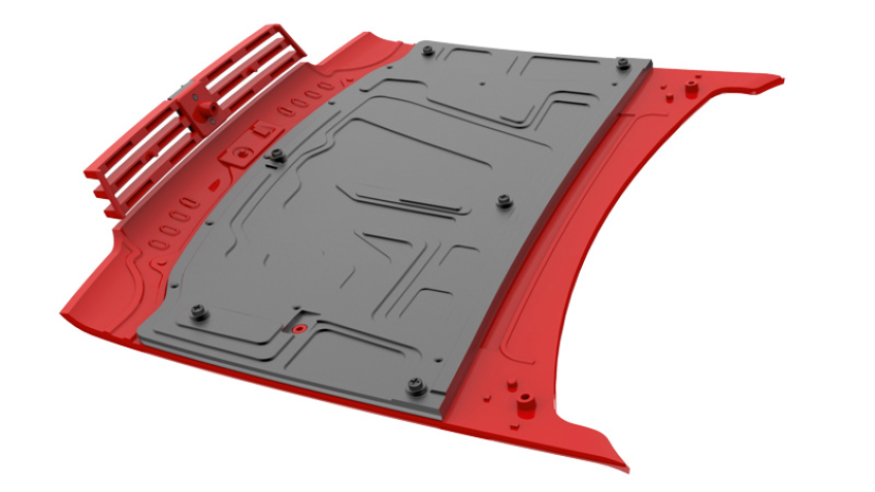

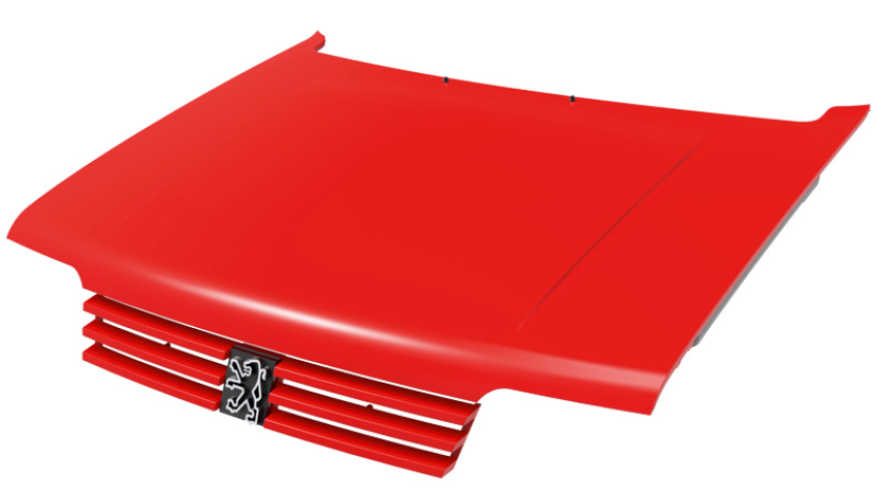

Assembly drawings
General view
Kit 2

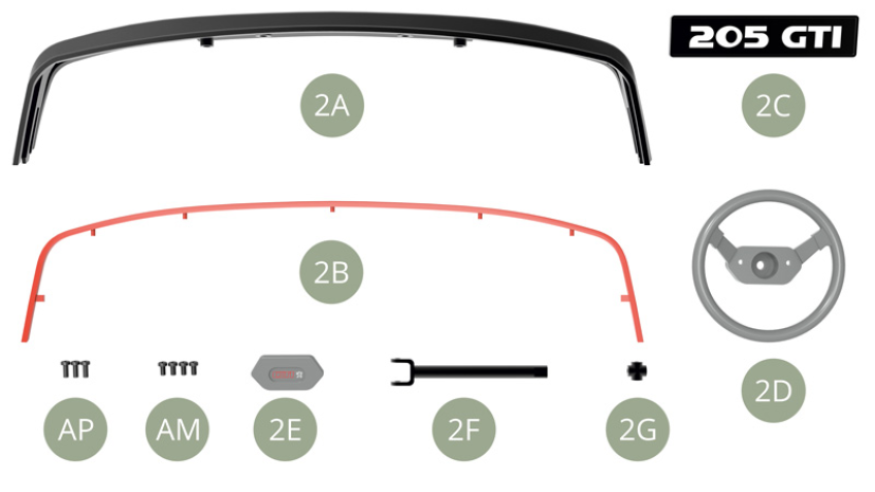

Parts of kit
- 2A Front bumper
- 2B Front bumper trim
- 2C Front license plate
- 2D Steering wheel
- 2E Steering wheel cover
- 2F Steering wheel shaft
- 2G Universal joint cross
- Screws AP M1,7 x4mm ( x3 )
- Screws AM M1,7 x3mm ( x4 )
Step 1

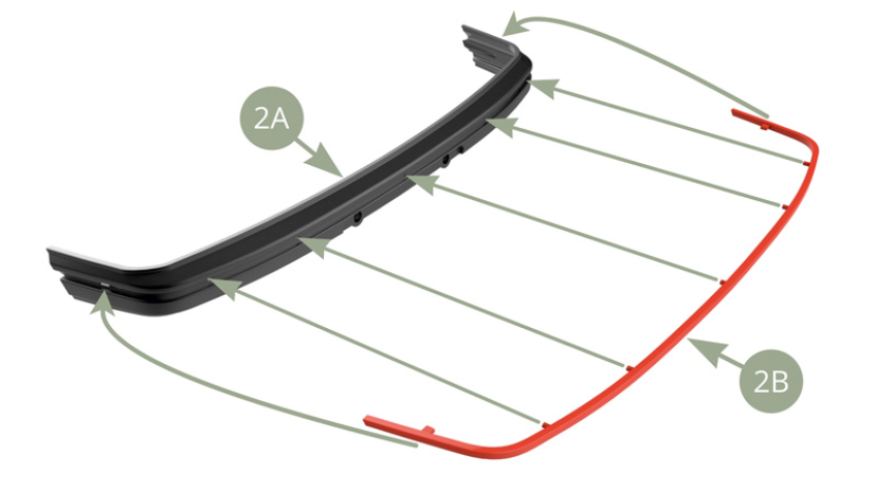

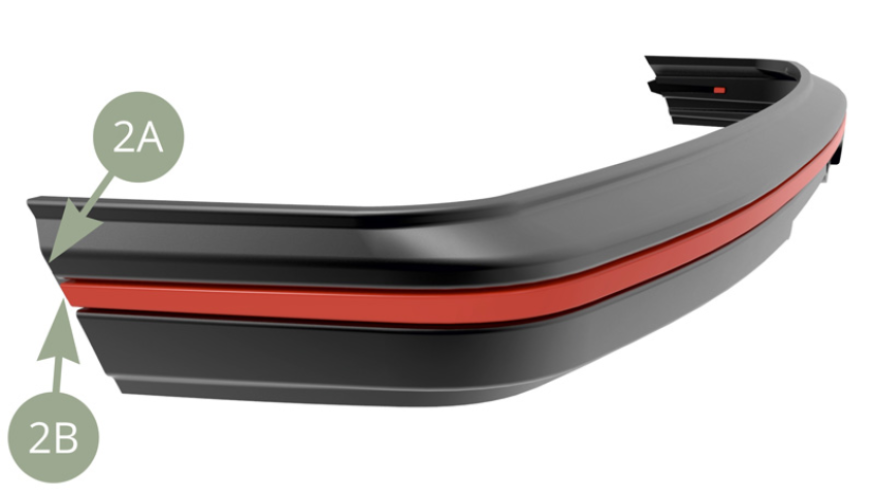

Fit 2B Front bumper trim to 2A Front bumper
Mind 2B Front bumper trim slanted edge orientation to coincide with 2A Front bumper edge slant.
Step 2

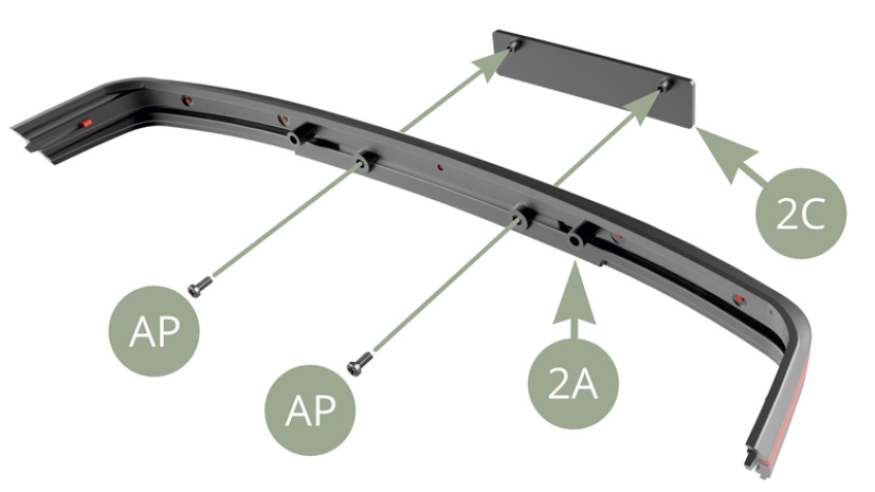

Fit 2C Front license plate to 2A Front bumper and fix with two AP screws.

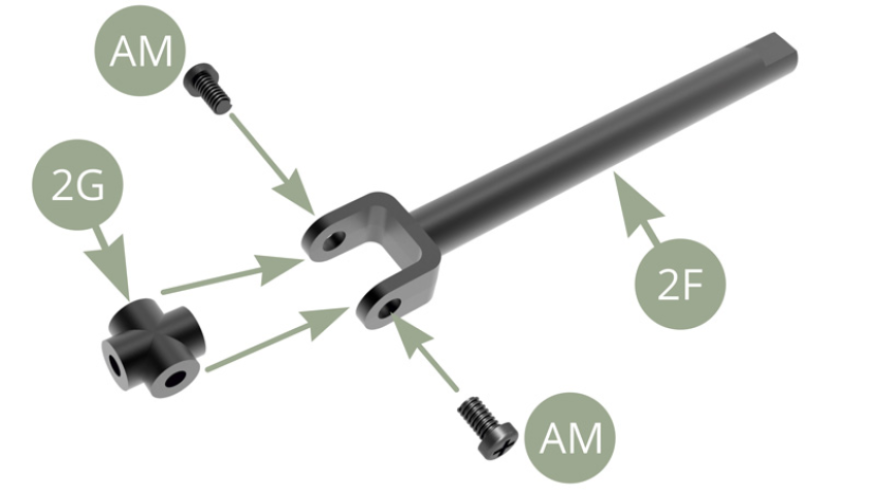

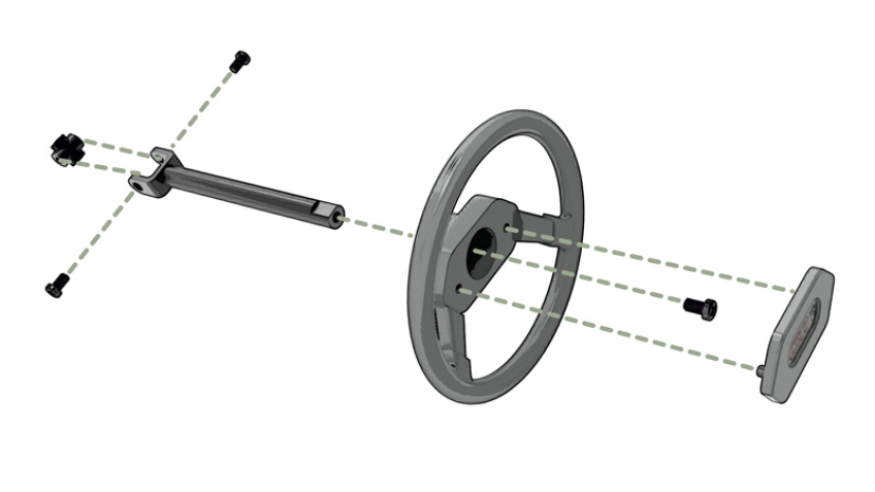

Fit 2G Universal joint cross to 2F Steering wheel shaft fork end , and fix with two AM screws.
Step 3

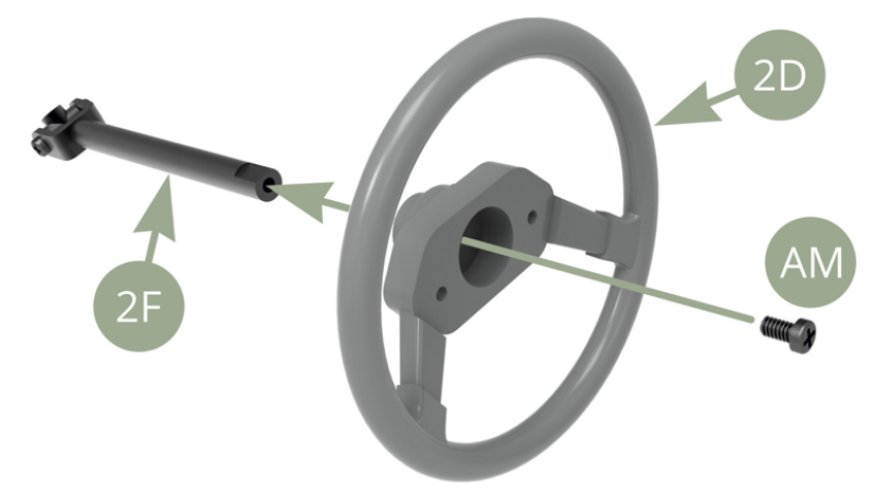

Fit 2D Steering wheel to 2F Steering wheel shaft and fix with AM screw.

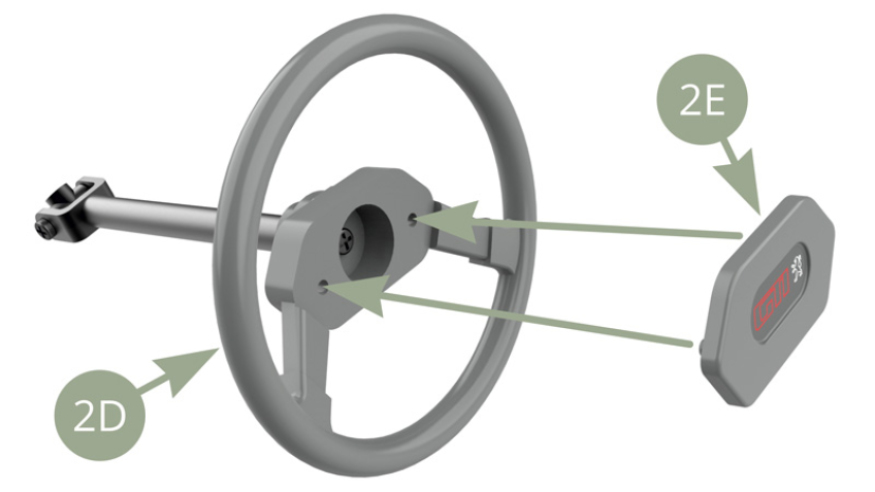

Fit 2E Steering wheel cover to 2D Steering wheel.

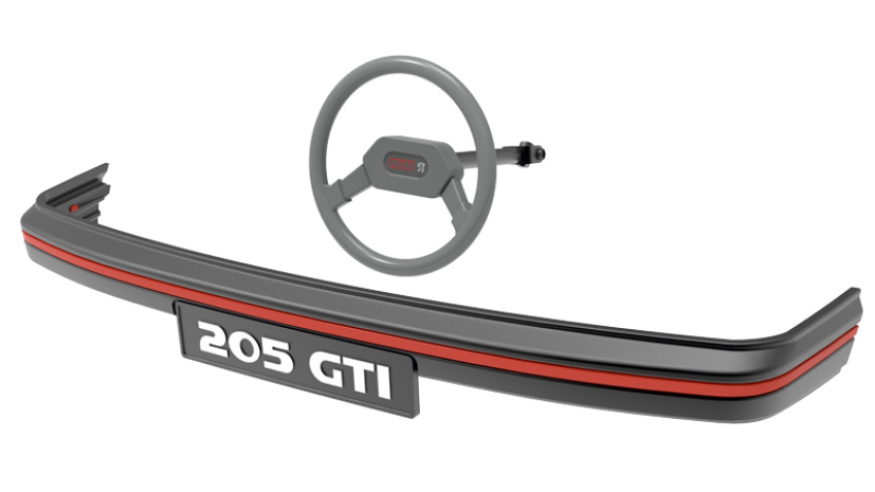

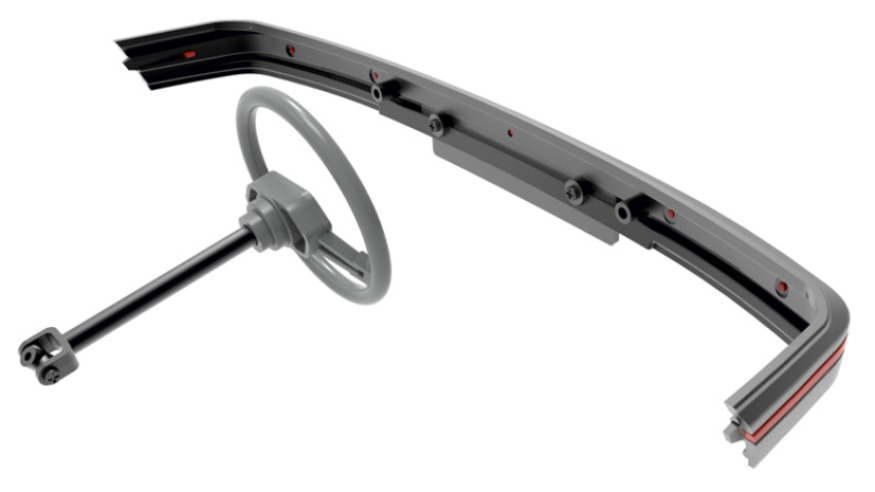

Assembly drawings
General view
Kit 3

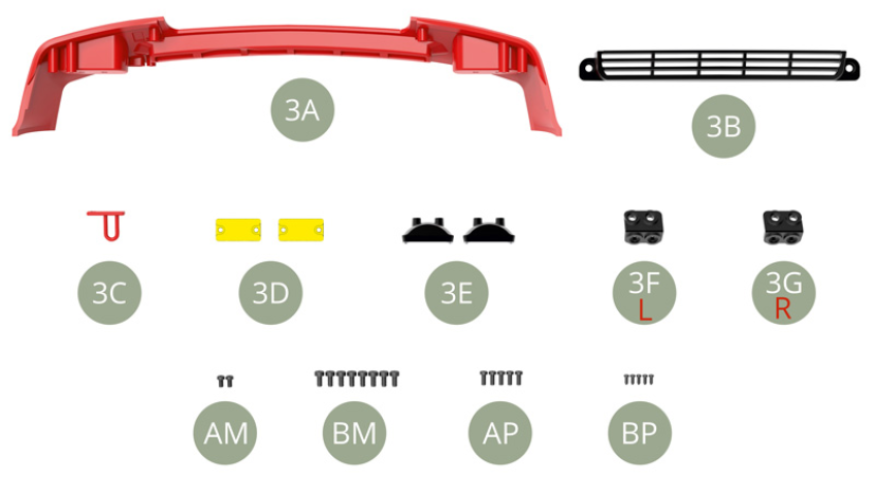

Parts of kit
- 3A Front bumper
- 3B Grille
- 3C Front tow hook
- 3D Driving light lense ( x2 )
- 3E Driving light housing ( x2 )
- 3F Left Bracket
- 3G Right Bracket R
- AM M1,7 x3mm ( x2 )
- BM M2,0 x4mm ( x8 )
- AP M1,7 x4mm ( x5 )
- BP M1,2 x3mm ( x5)
Step 1

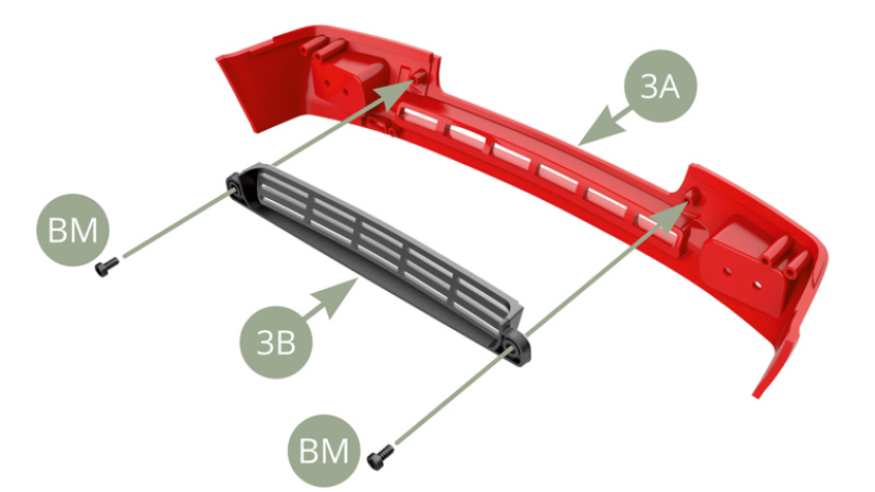

Fit 3B Grille to 3A Front bumper and fix with two BM screws.

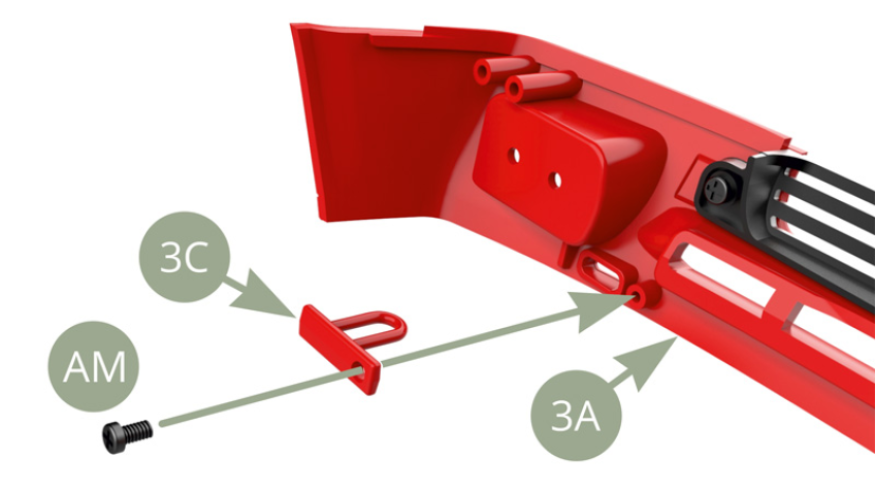

Fit 3C Front tow hook to 3A Front bumper and fix with AM screw.
Step 2

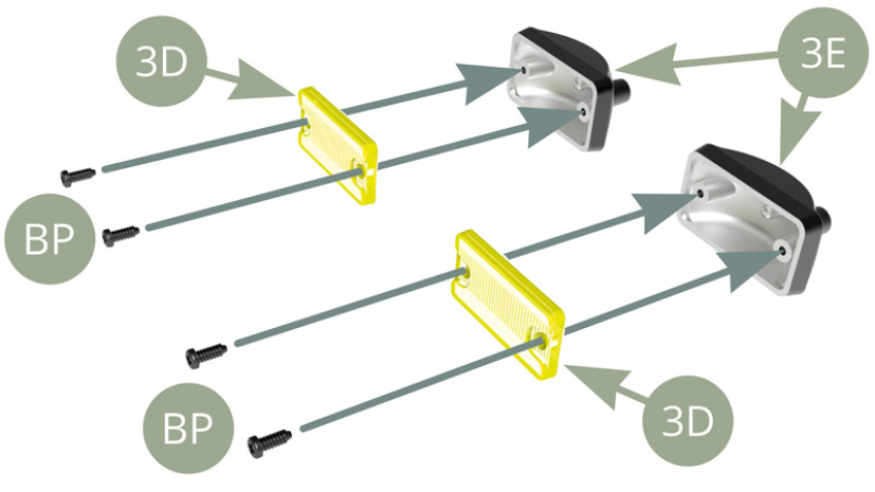

Fit 3D Driving light lenses to 3E Driving light housings and fix each one with two BP screws.
Step 3

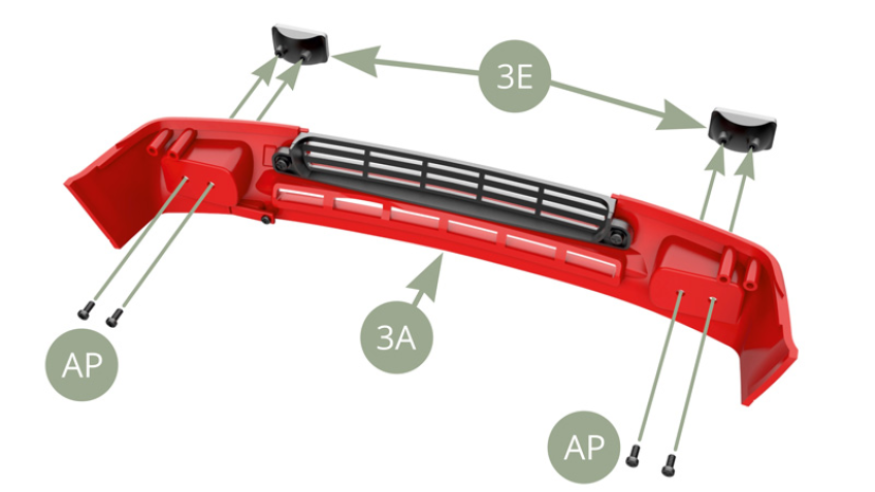

Fit 3E Driving light housings to 3A Front bumper and fix each one with two AP screws.
Step 4

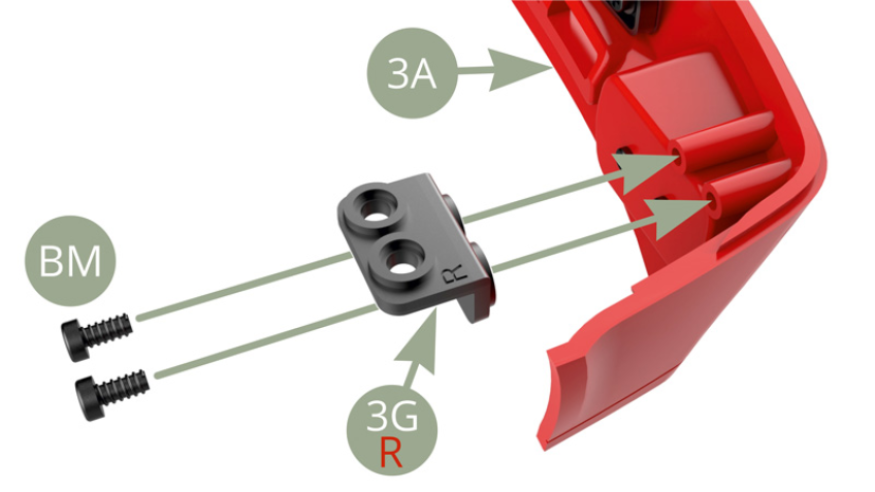

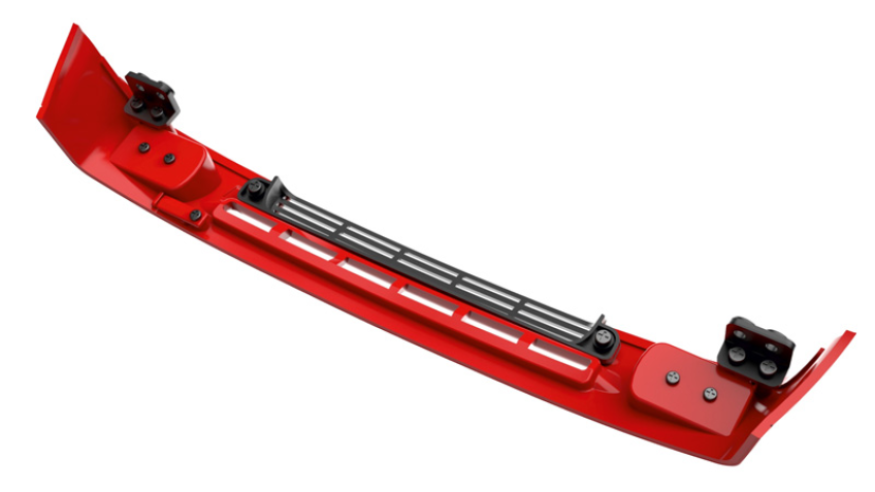

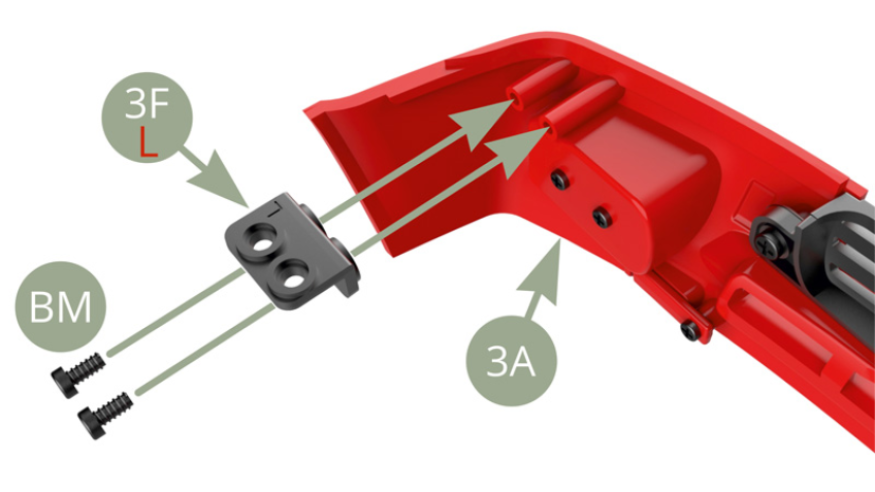

Fit 3F Left Bracket L to 3A Front bumper and fix with two BM screws.
Fit 3G Right Bracket R to 3A Front bumper and fix with two BM screws.

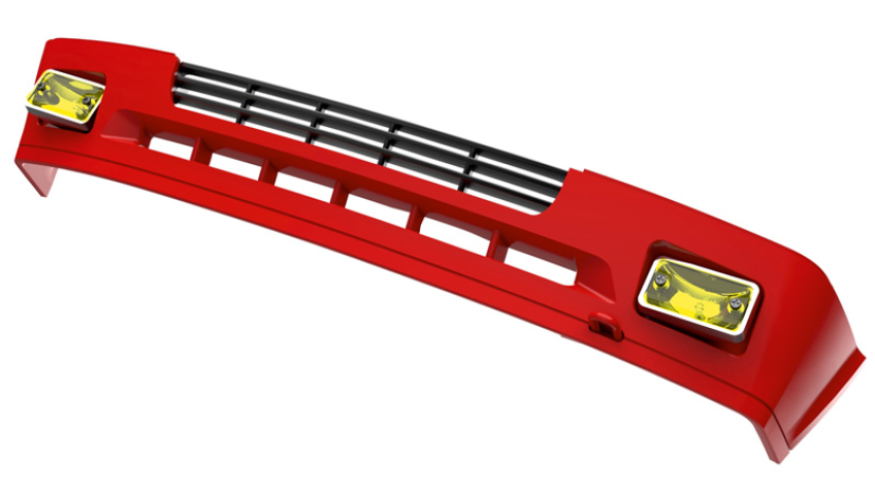

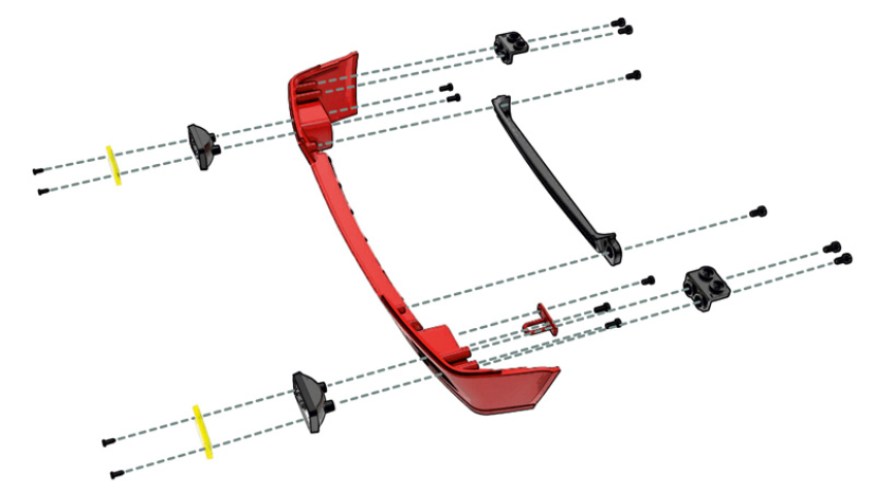

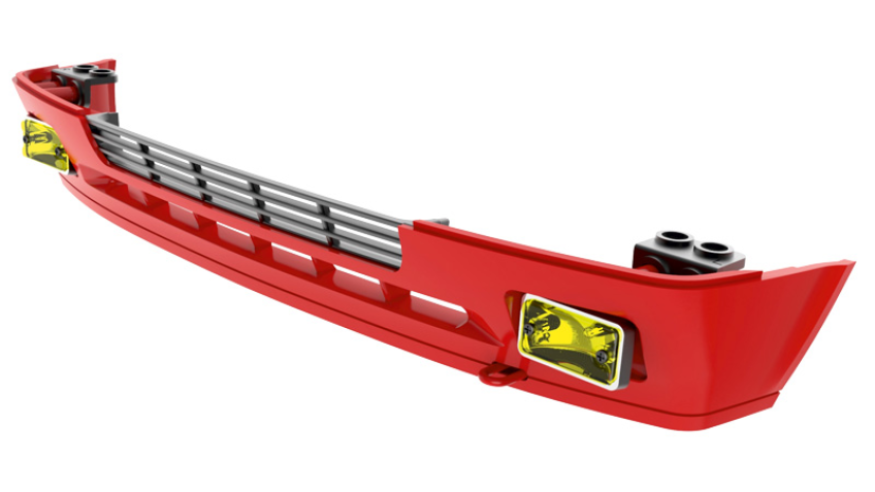

Assembly drawings
General view
Kit 4

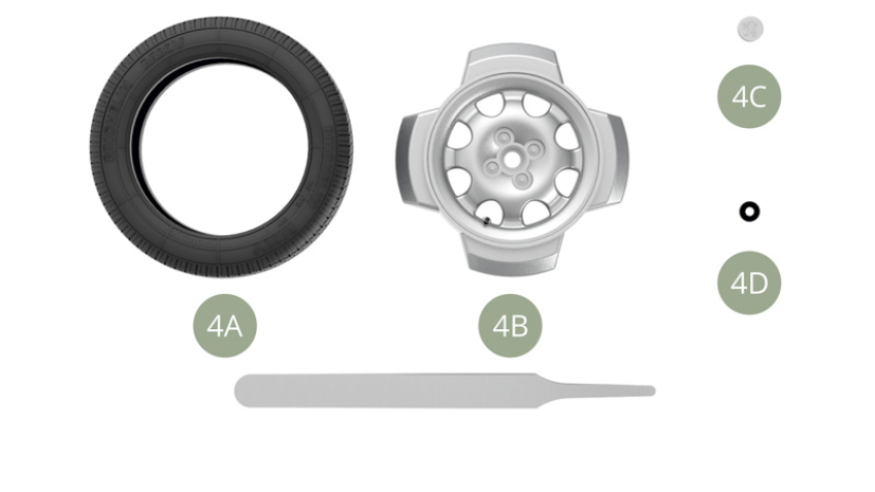

Parts of kit
- 4A Michelin MXV tire
- 4B Wheel rim
- 4C Hub cover
- 4D Washer
- Tweezers
Step 1

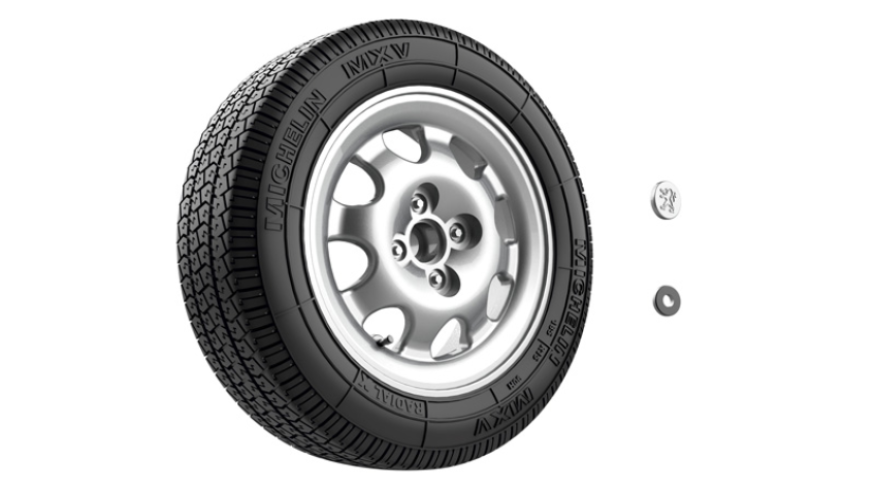

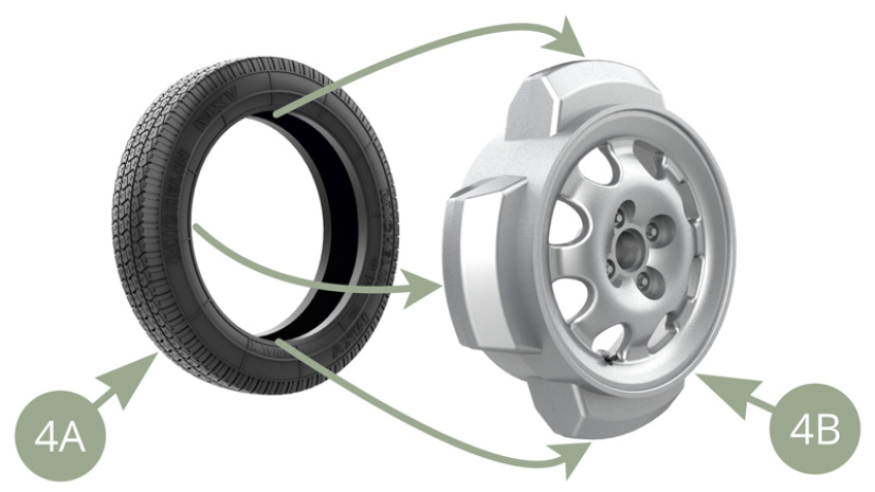

Put 4A Michelin MXV tire for two minutes into hot water , and then fit it over 4B Wheel rim.

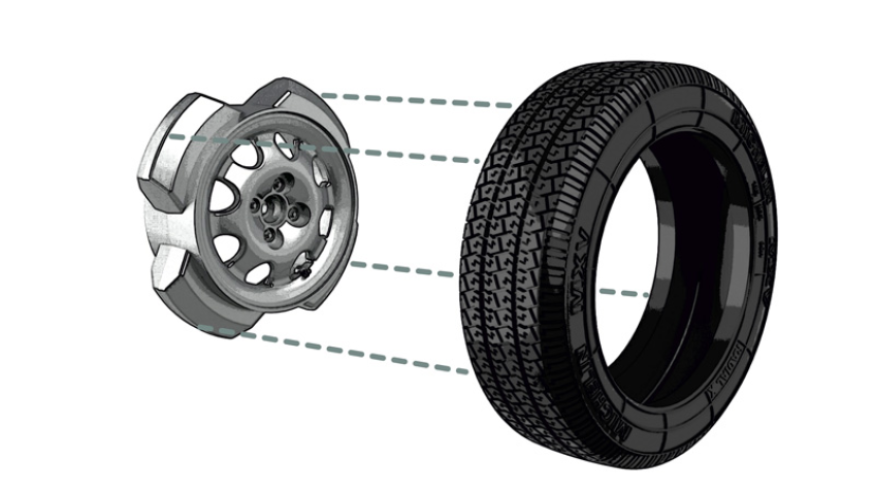

Assembly drawings
General view
