Peugeot 205 GTI 1.9 - Box 14
Kit 53
Parts of kit
- 53A Front left seat backrest
- 53B Backrest padding
- 53C Backrest inner panel
- 53D Backrest outer panel
- 53E Headrest front
- 53F Headrest back
- 53G Roundel stickers ( x8 )
- CP M 1,7 x 5 mm (x 10)
Step 1

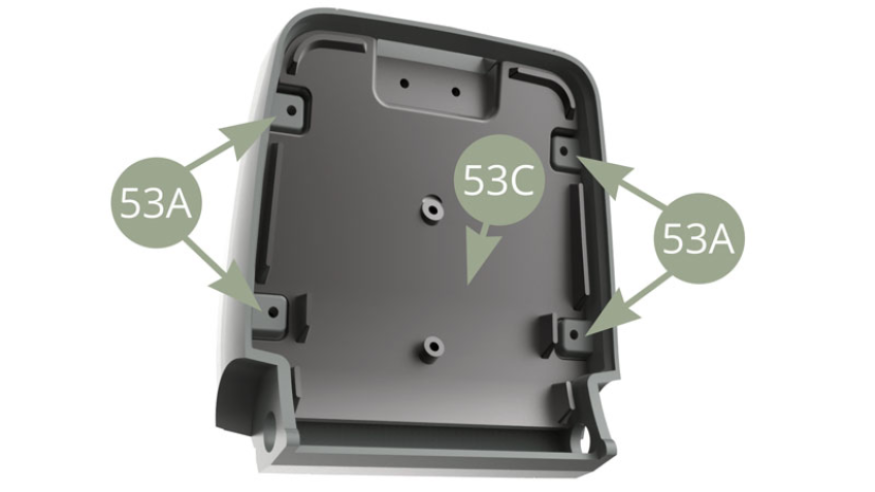

Fit 53B Backrest padding into 53A Front left seat backrest . Fit 53C Backrest inner panel on top of 53B Backrest padding , and into 53A Front left seat backrest with its four tabs going over 53C Backrest inner panel as blue arrows show.

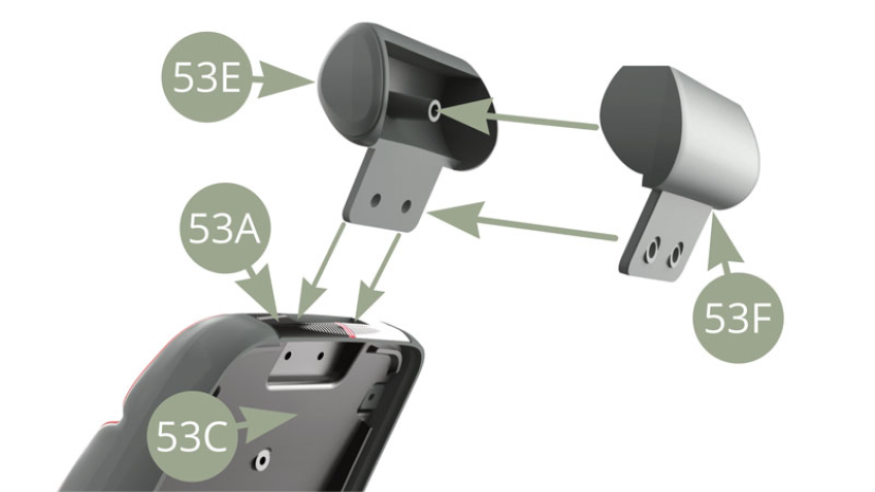

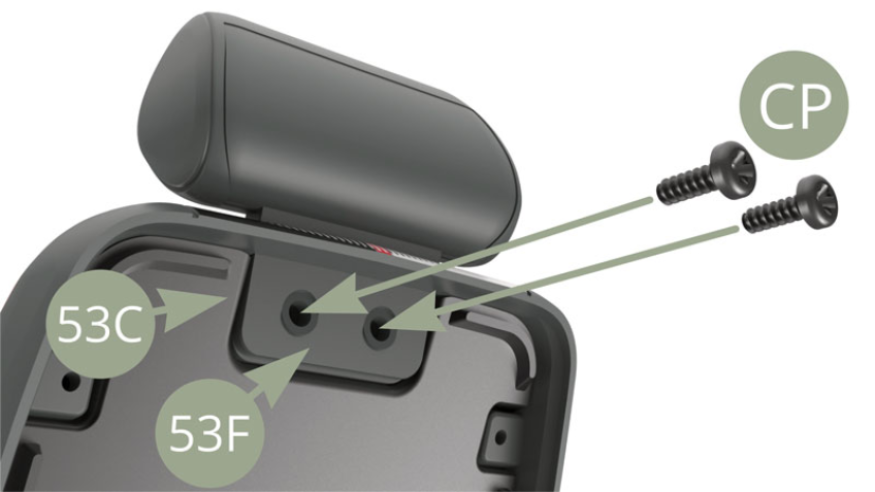

Fit together 53E Headrest front and 53F Headrest back parts and insert their lower tabs into 53A Front left seat backrest top slot , fixing the inserted tabs with two CP screws to 53C Backrest inner panel ( illustrations below ).

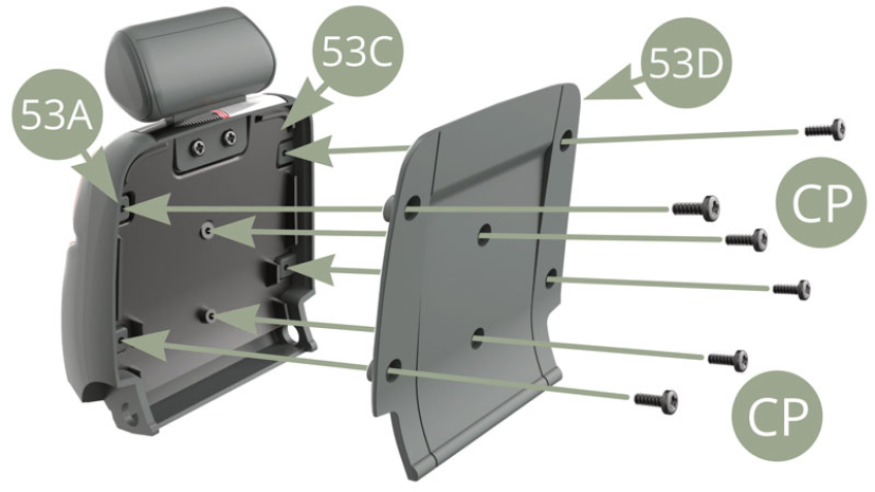

Fit 53D Backrest outer panel to 53C Backrest inner panel and fix with six CP screws.

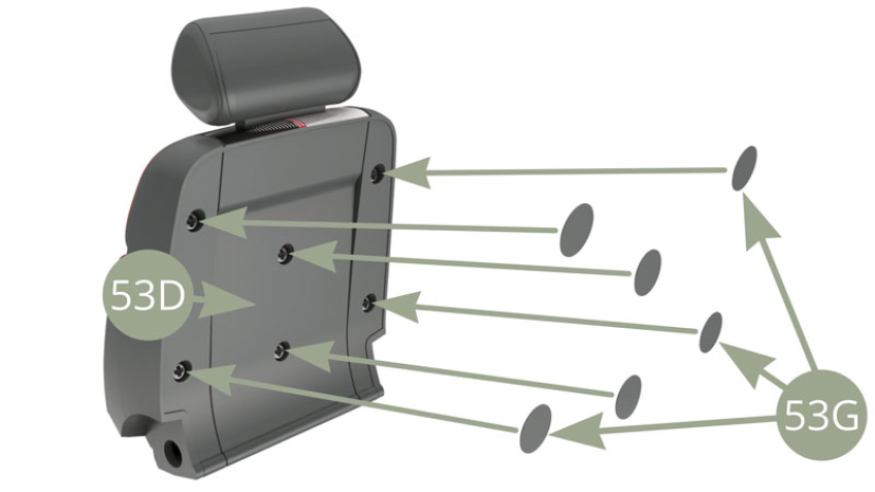

One by one , peel off backing paper 53G Roundel stickers , and apply them over six screw head niches on 53D Backrest outer panel.

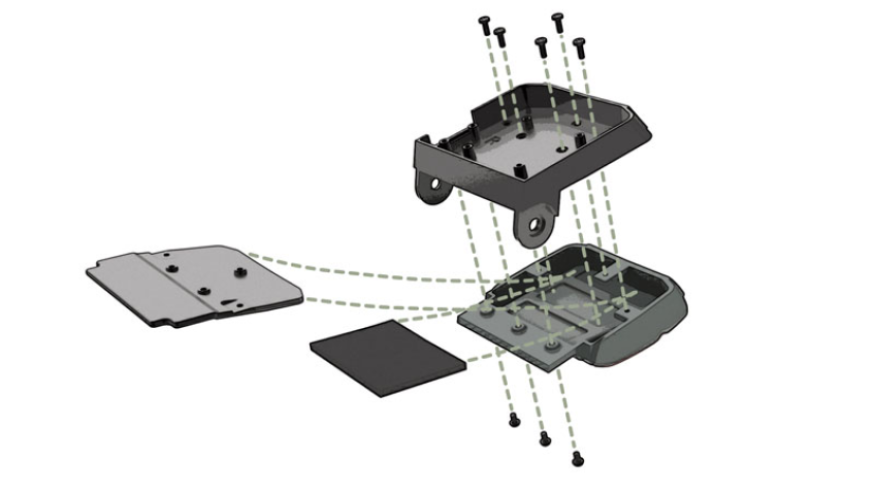

Assembly drawings

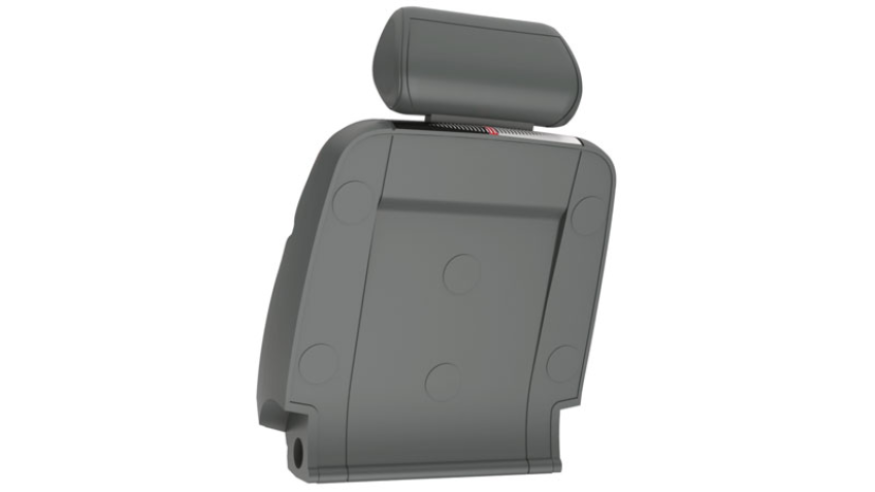

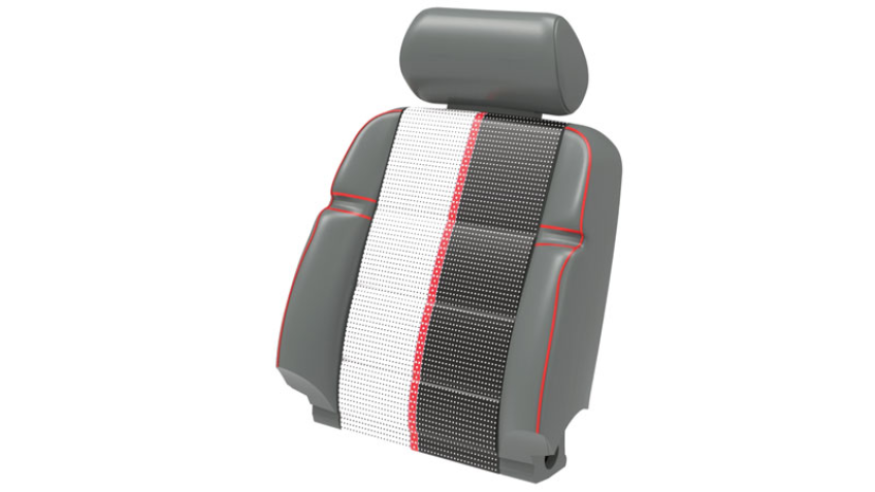

General view
Kit 54

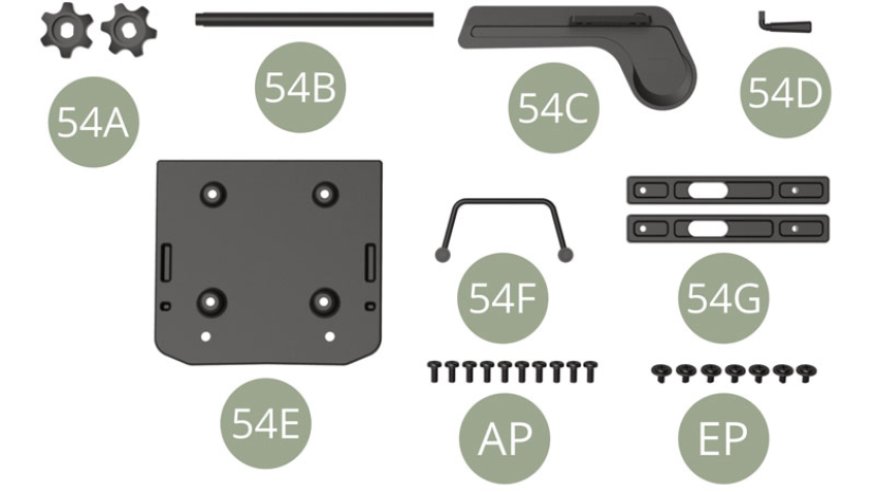

Parts of kit
- 54A Backrest adjustment wheel ( x2 )
- 54B Axle
- 54C Seat base side panel
- 54D Seat lifting lever
- 54E Seat base bottom panel
- 54F Fore and aft adjustment lever
- 54G Fore and aft slide rails ( x2 )
- AP M 1,7 x 4 mm (x 10)
- EP M 1,7 x 3 x 5 mm (x 7)
Step 2

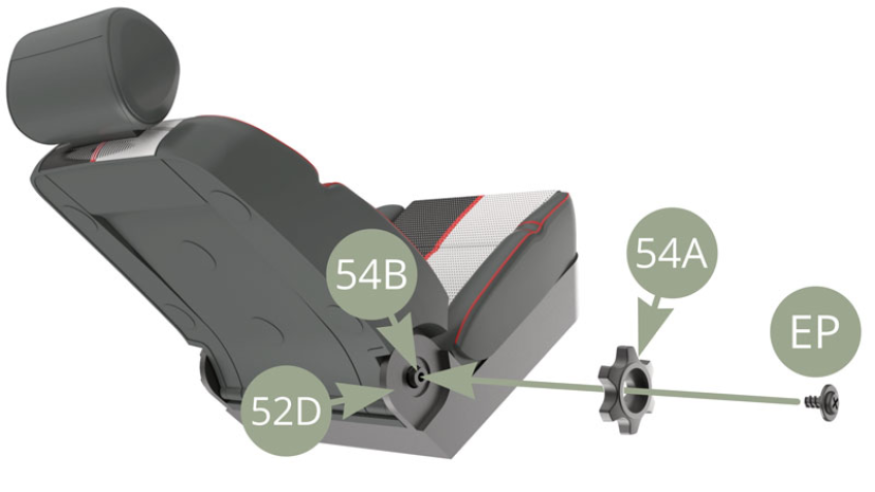

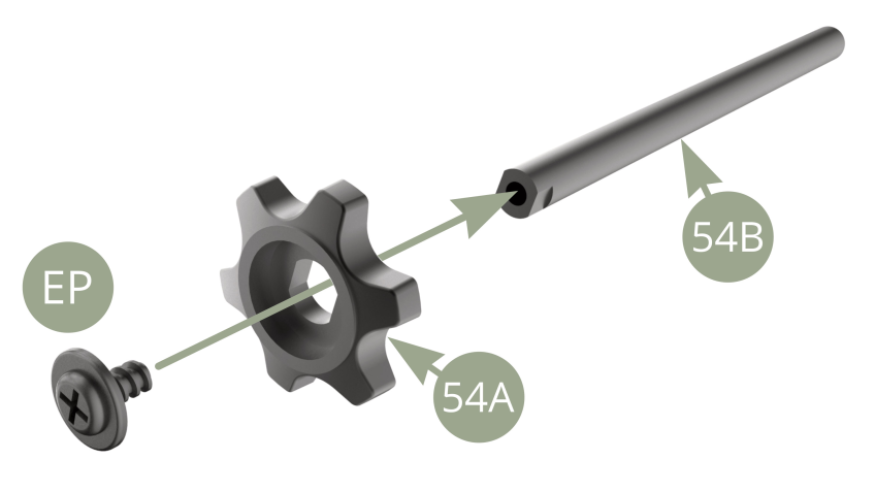

Fit 54A Backrest adjustment wheel to any end of 54B Axle and fix with EP screw.

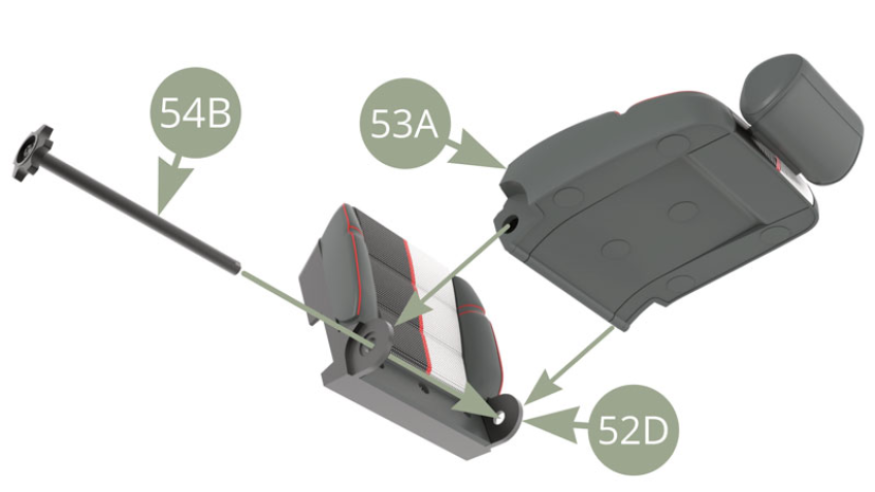

Align 53A Backrest lower side holes to 52D Seat base brackets and lock them together by passing 54B Axle.
Fit 54A Backrest adjustment wheel to the other end of 54B Axle and fix with EP screw.

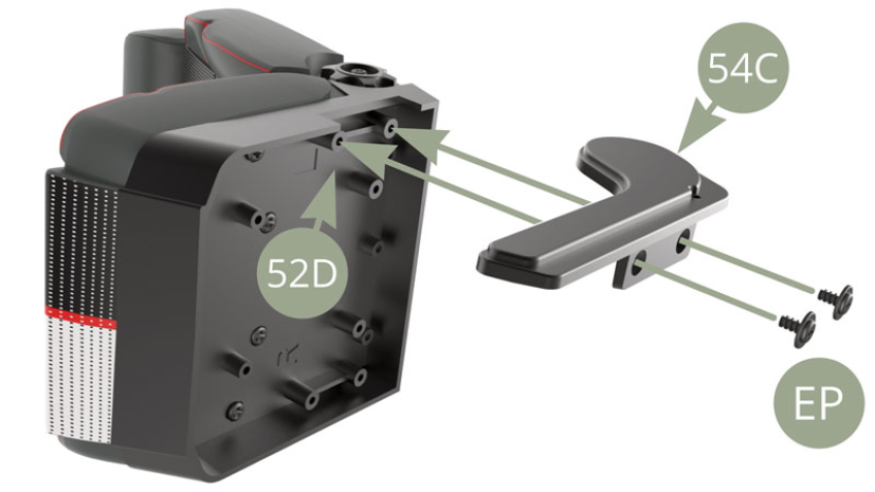

Fit 54C Seat base side panel to 52D Seat base and fix with two EP screws.

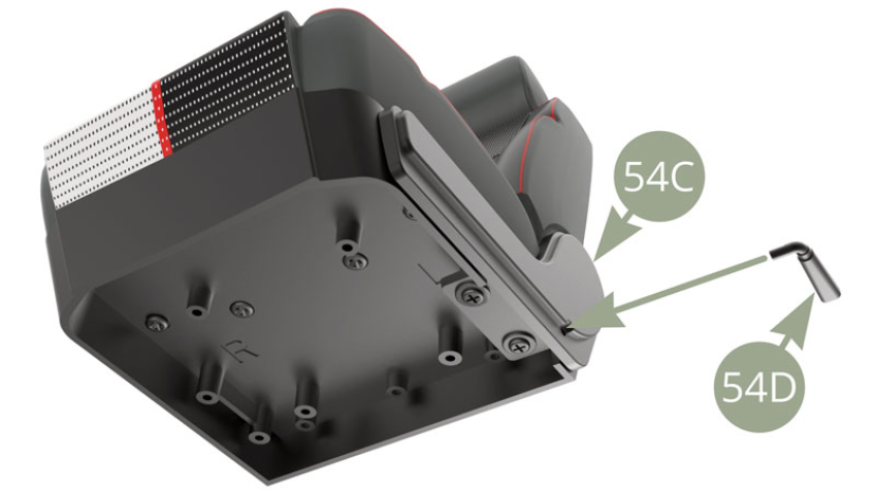

Fit 54D Seat lifting lever to 54C Seat base side panel.

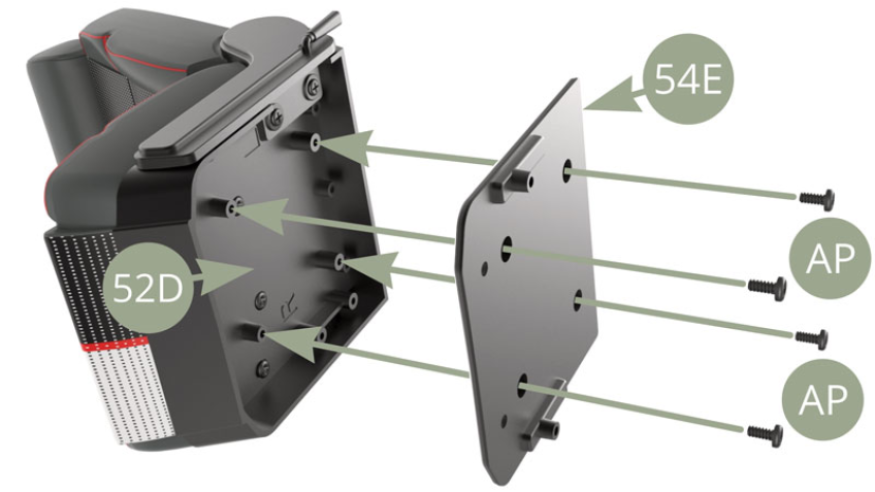

Fit 54E Seat base bottom panel to 52D Seat base and fix with four AP screws.

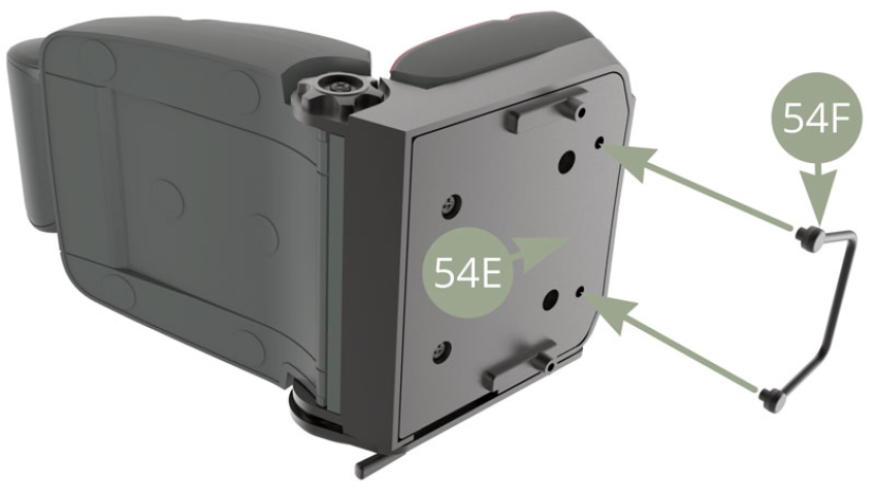

Fit 54F Fore and aft adjustment lever to 54E Seat base bottom panel.

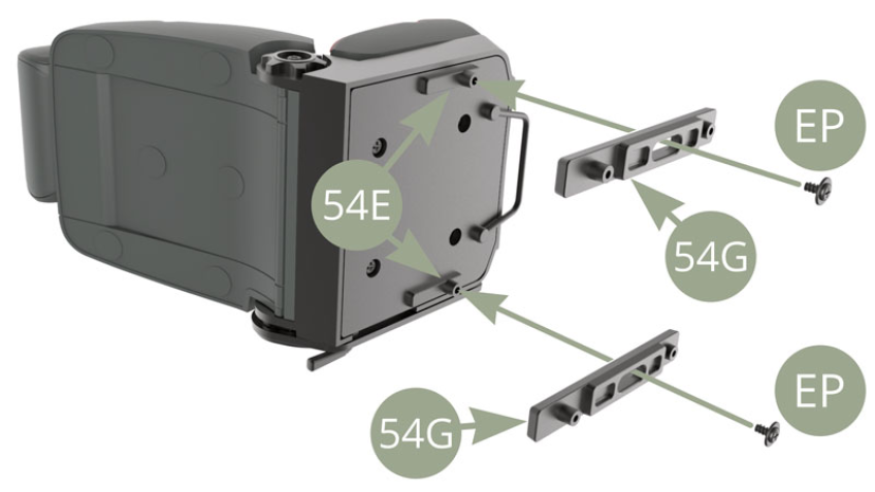

Fit two 54G Fore and aft slide rails to embossed guides on 54E Seat base bottom panel and fix each one with EP screw.

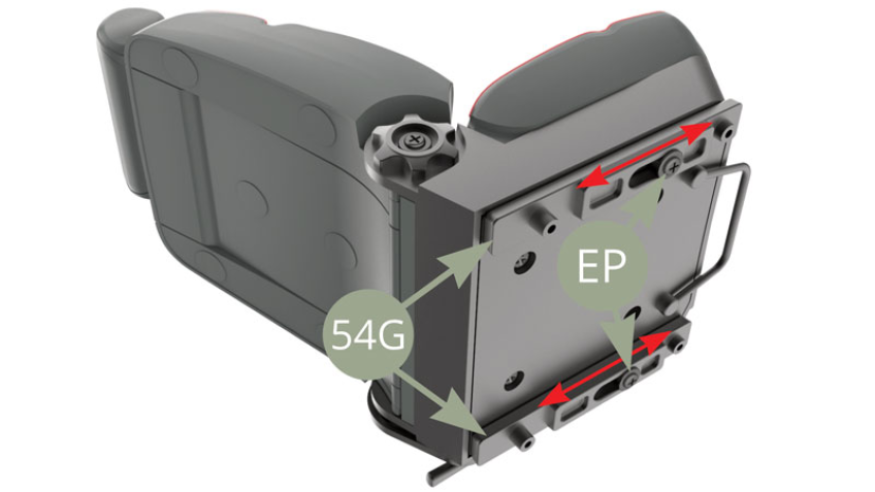

Adjust EP screws tension to allow 54G Rails slide motion ( red arrows ).

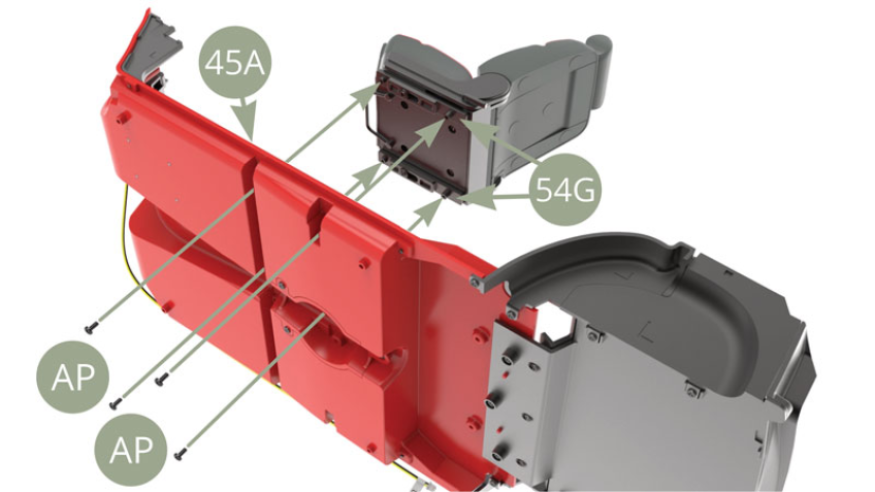

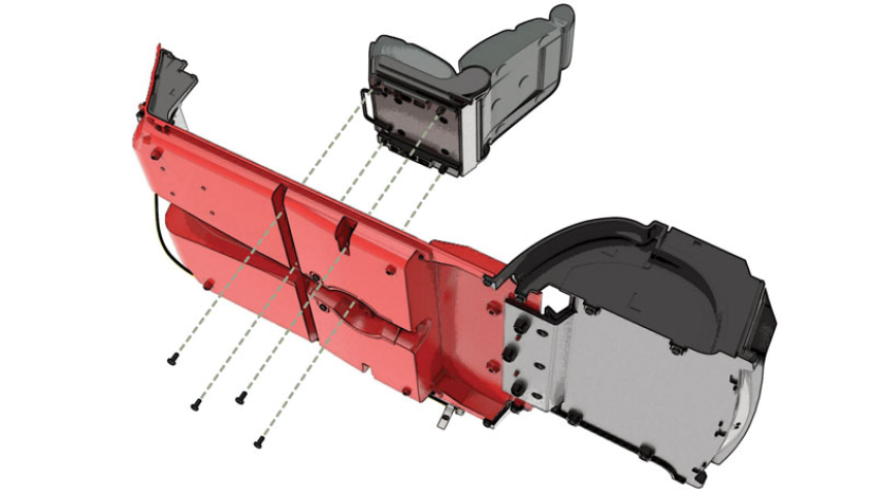

Fit preassembled Left front seat by its two 54G Rails to 45A Cabin floor and fix with four AP screws (next illustrations ).

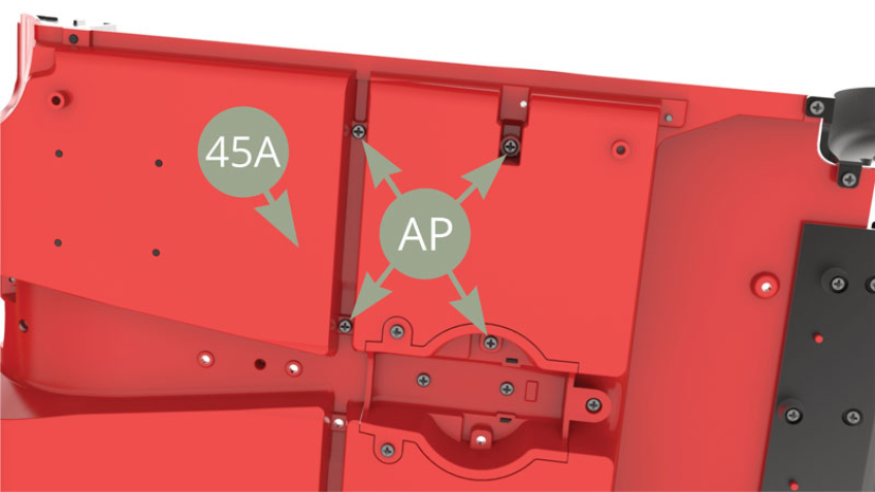

Four AP attachment screws front left seat

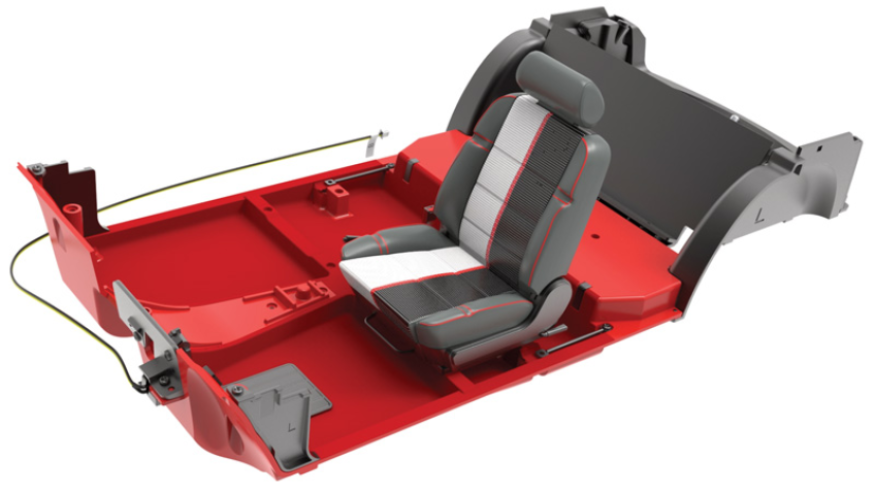

Front left seat installed

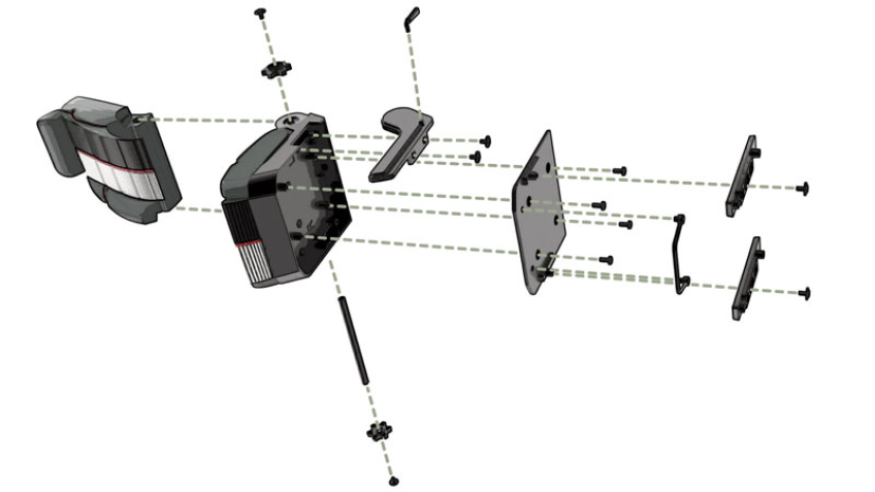

Assembly drawings
General view
Kit 55

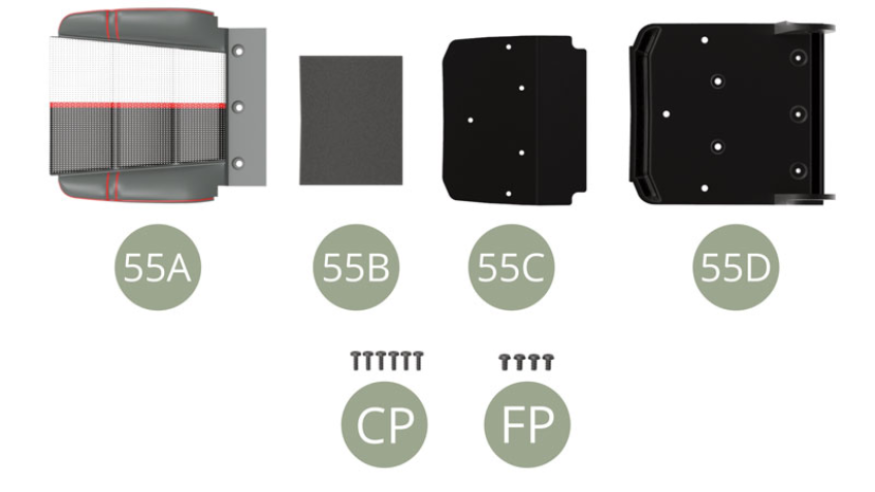

Parts of kit
- 55A Front right seat cushion
- 55B Cushion padding
- 55C Cushion panel
- 55D Front right seat base
- CP M 1,7 x 5 mm (x 6)
- FP M 2,0 x 4 x 4 mm (x 4)
Step 3

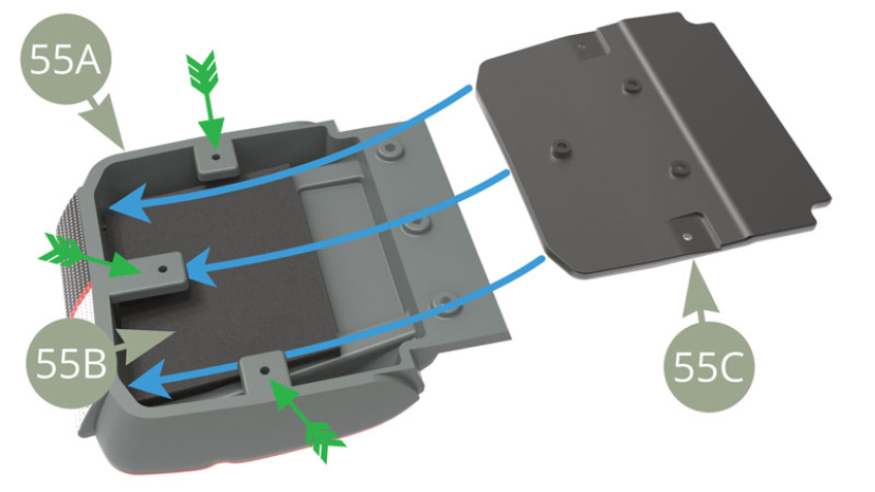

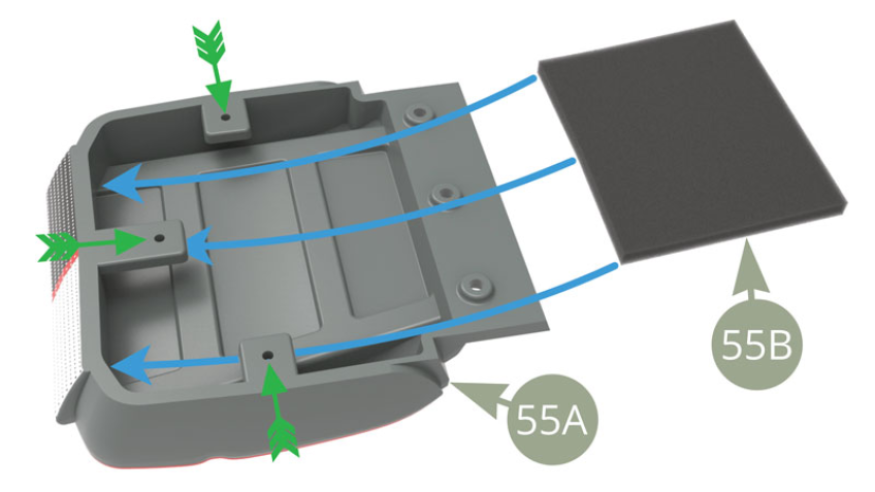

Slide 55B Cushion padding foam into 55A Front right seat cushion under three tabs pointed by green arrows.
Slide 55C Cushion panel into 55A Front right seat cushion , on top of 55B Cushion padding and under three tabs pointed by green arrows.

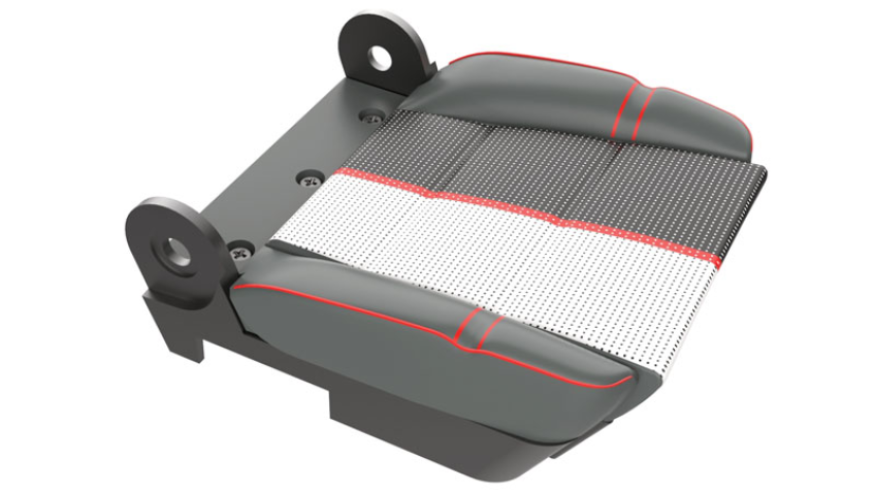

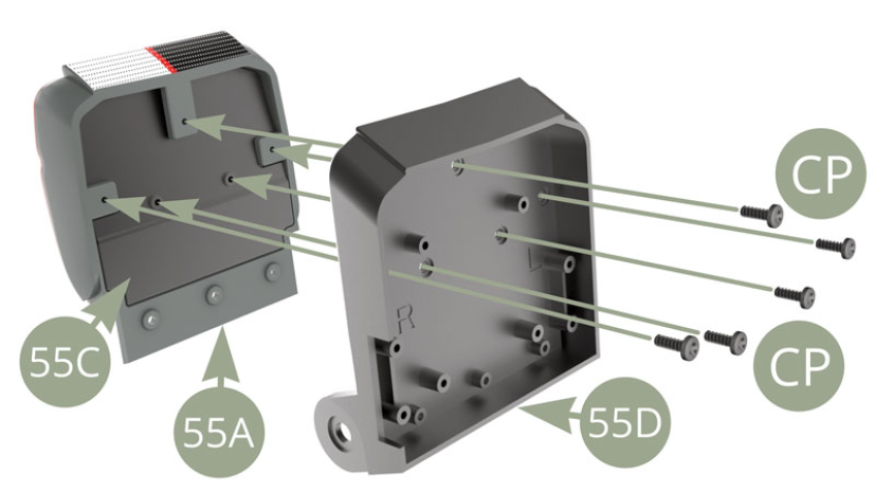

Fit 55D Front right seat base to 55A Front right seat cushion with 55C Cushion panel, and fix to the latter with five CP srews.

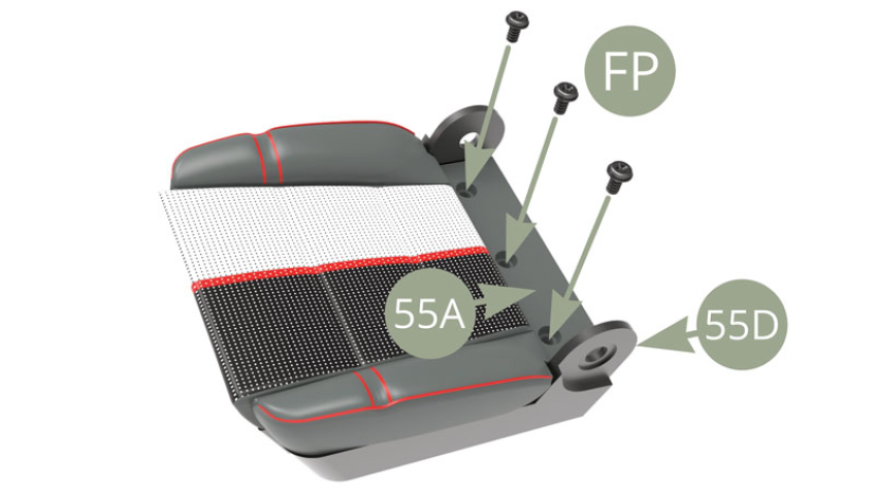

Fix 55A Front right seat cushion to 55D Front right seat base with three FP screws.
Assembly drawings

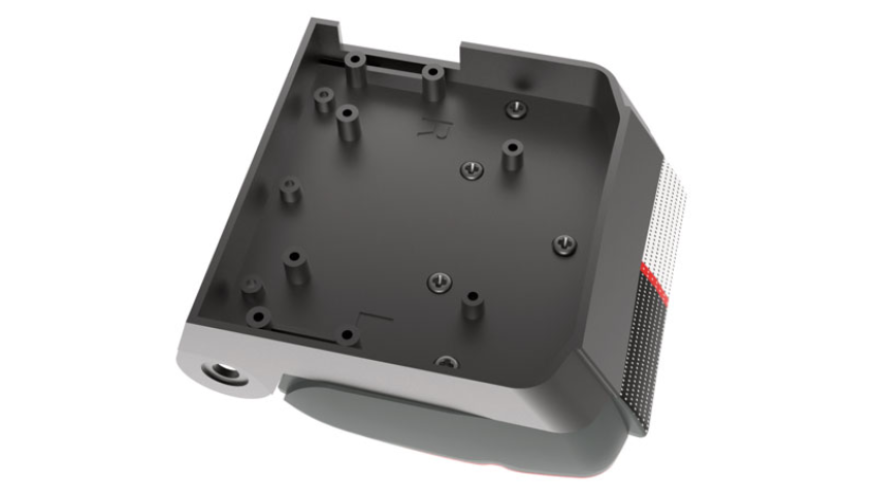

General view
Kit 56

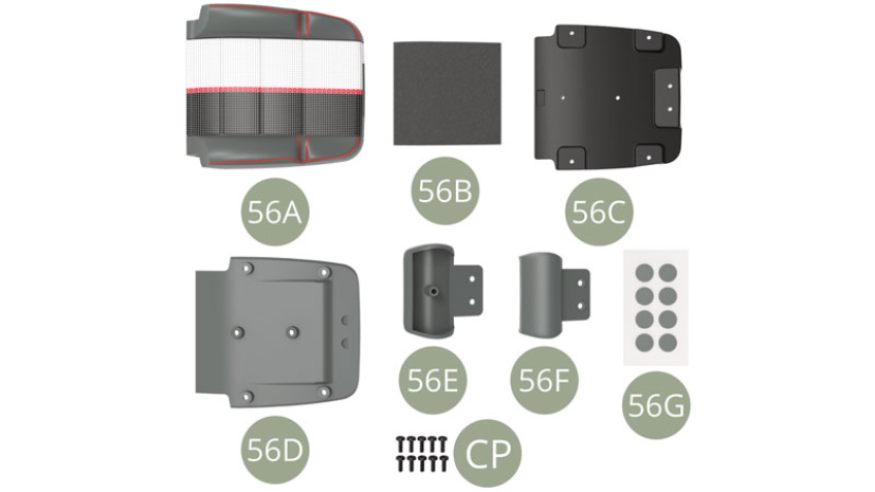

Parts of kit
- 56A Front right seat backrest
- 56B Backrest padding
- 56C Backrest inner panel
- 56D Backrest outer panel
- 56E Headrest front
- 56F Headrest back
- 56G Roundel stickers ( x8 )
- CP M 1,7 x 5 mm (x 10)
Step 4

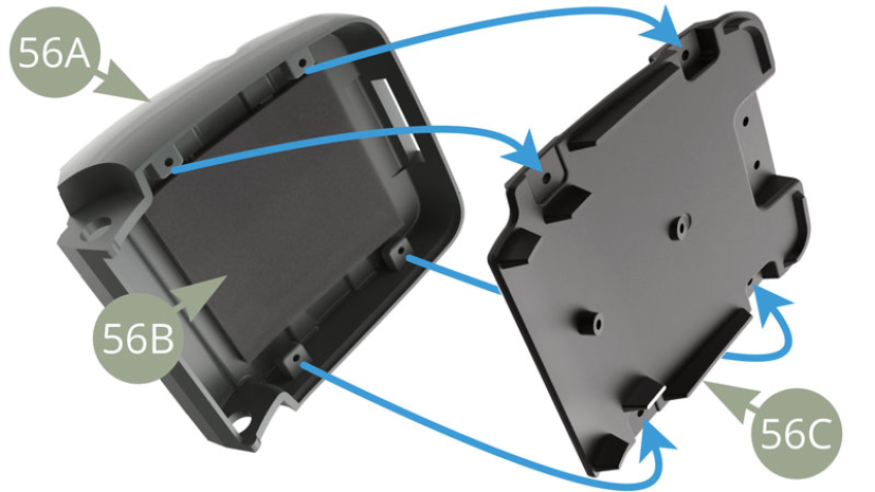

Fit 56B Backrest padding into 56A Front right seat backrest . Fit 56C Backrest inner panel on top of 56B Backrest padding , and into 56A Front right seat backrest with its four tabs going over 56C Backrest inner panel as blue arrows show.
Fit together 56E Headrest front and 56F Headrest back parts and insert their lower tabs into 56A Front right seat backrest top slot , fixing the inserted tabs with two CP screws to 56C Backrest inner panel ( illustration below ).
Fit 56D Backrest outer panel to 56C Backrest inner panel and fix with six CP screws.
One by one , peel off backing paper 56G Roundel stickers, and apply them over six screw head niches on 56D Backrest outer panel.

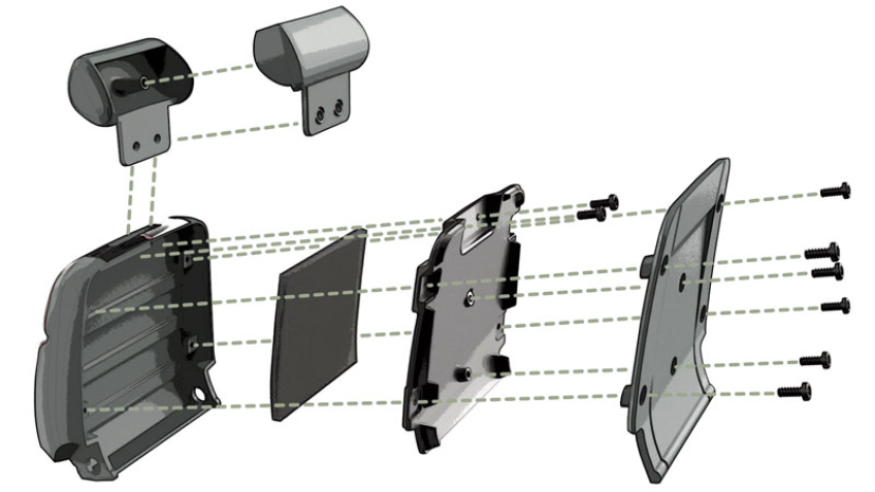

Assembly drawings
General view
