Peugeot 205 GTI 1.9 - Box 3

Kit 9

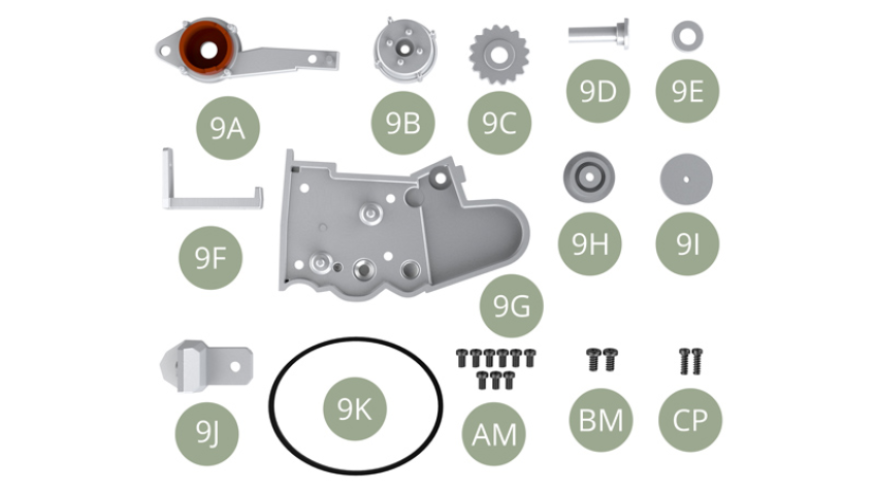

Parts of kit

9A Alternator bracket 1
9B Alternator housing
9C Alternator fan
9D Axle sheave
9E Sheave cheek
9F Alternator bracket 2
9G Timing belt cover
9H Crankshaft sheave
9I Sheave cheek
9J Engine mount
9K Alternator belt
AP M 1,7 x3mm ( x9 )
BM M 2,0 x4mm ( x2 )
CP M 1,7 x5mm ( x2

9A Alternator bracket 19B Alternator housing9C Alternator fan9D Axle sheave 9E Sheave cheek9F Alternator bracket 2 9G Timing belt cover9H Crankshaft sheave 9I Sheave cheek9J Engine mount9K Alternator beltAP M 1,7 x3mm ( x9 ) BM M 2,0 x4mm ( x2 )CP M 1,7 x5mm ( x2

Step 1

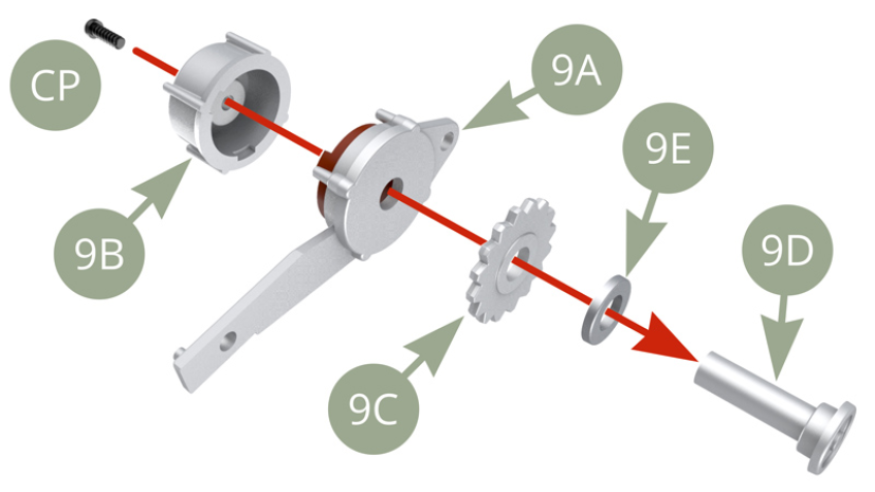

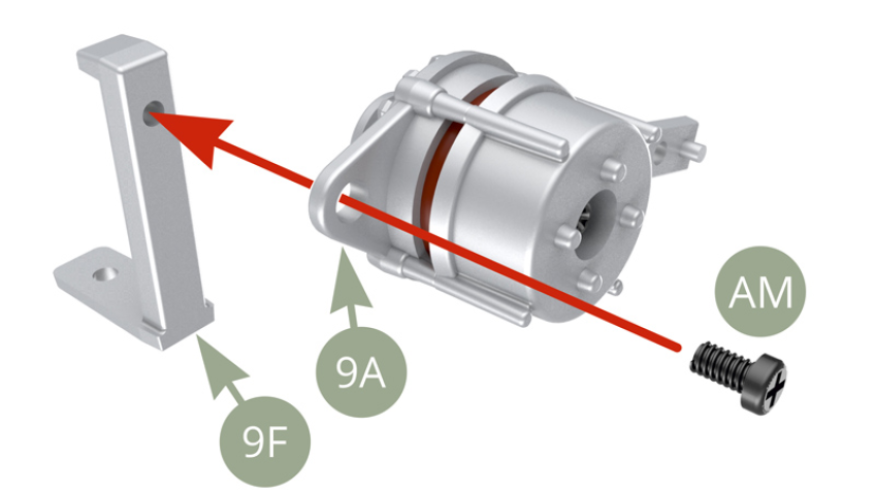

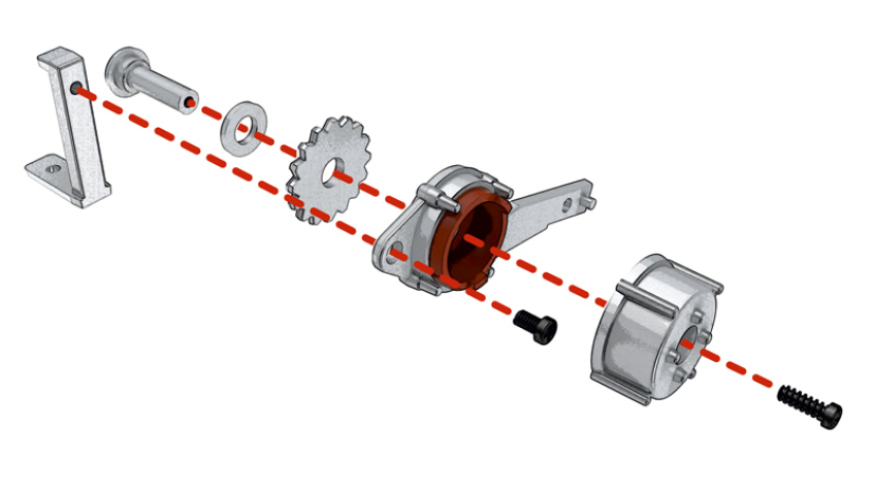

Fit consequtively 9E Sheave cheek , 9C Alternator fan , 9A Alternator bracket 1 and 9B Alternator housing on 9D Axle sheave and fix with CP screw. Fit 9A Alternator bracket 1 to 9F Alternator bracket 2 and fix with AM screw.

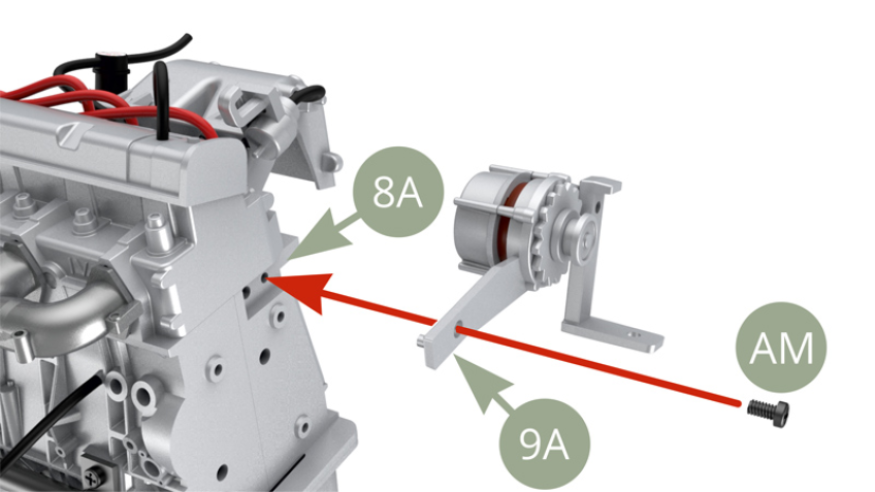

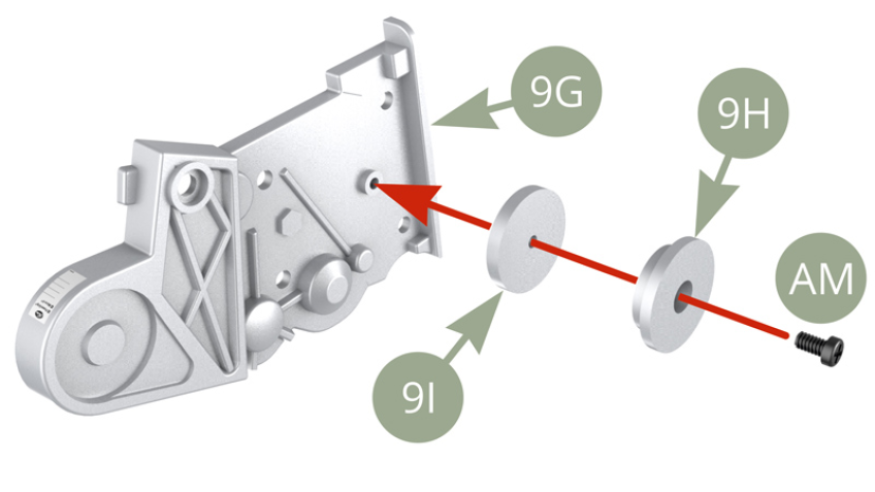

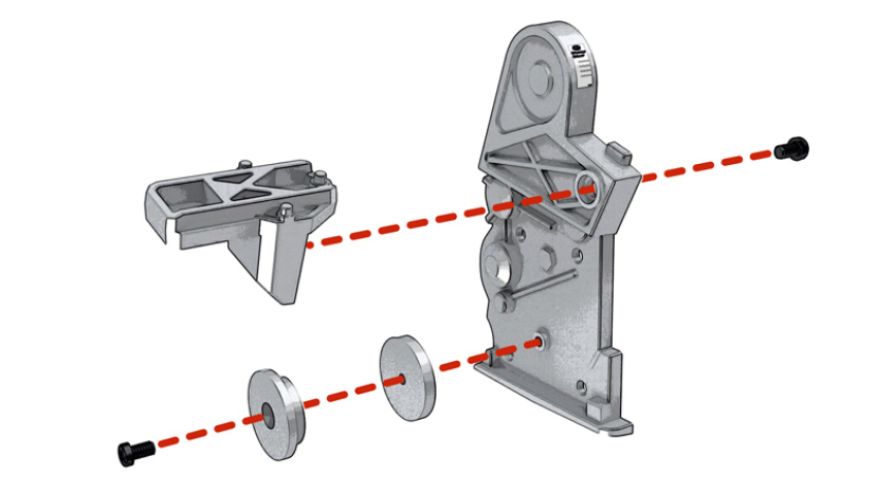

Fit 9A Alternator bracket 1 to 8A Left Engine block and fix with AM screw. Fit 9I Sheave cheek and 9H Crankshaft sheave to 9G Timing belt cover and fix with AM screw.

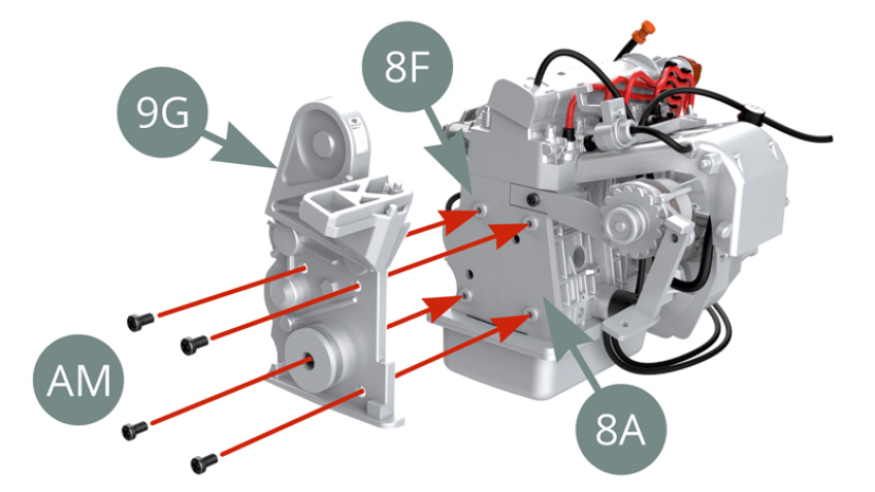

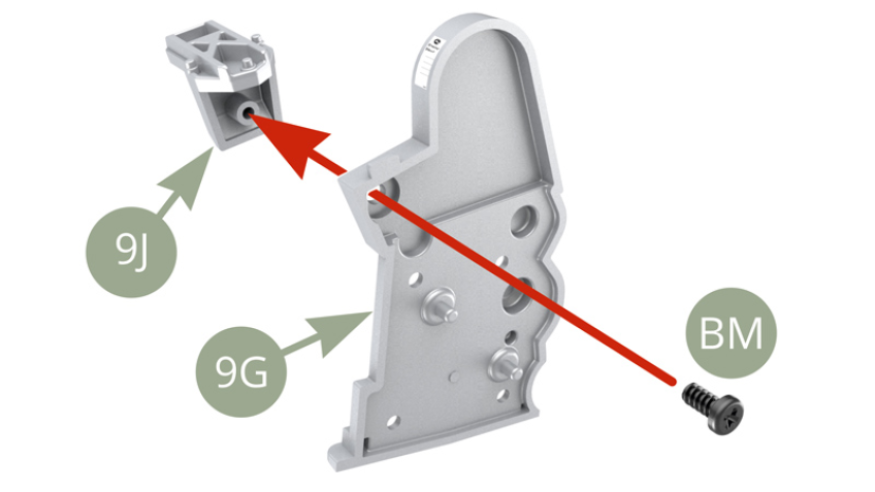

Fit 9J Engine mount to 9G Timing belt cover and fix with BM screw. Fit 9G Timing belt cover to 8A Left and 8F Right Engine blocks and fix with four AM screws.

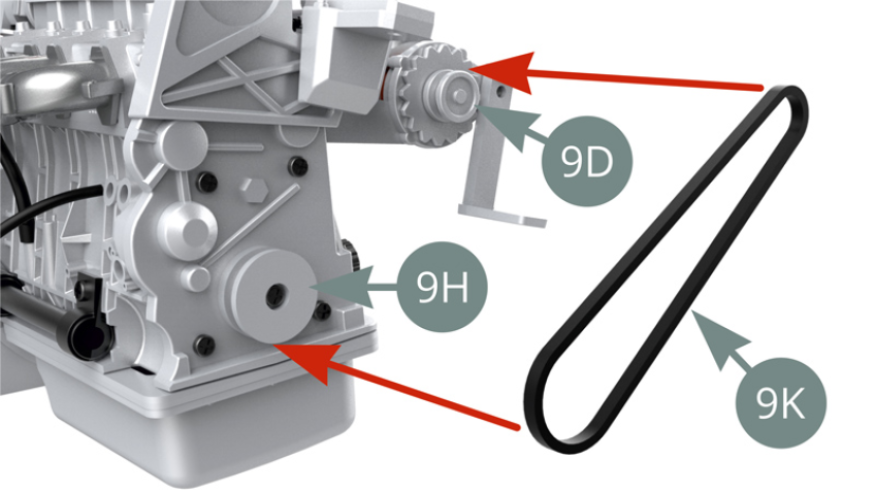

Fit 9K Alternator belt to 9H Crankshaft sheave and 9D Axle sheave.

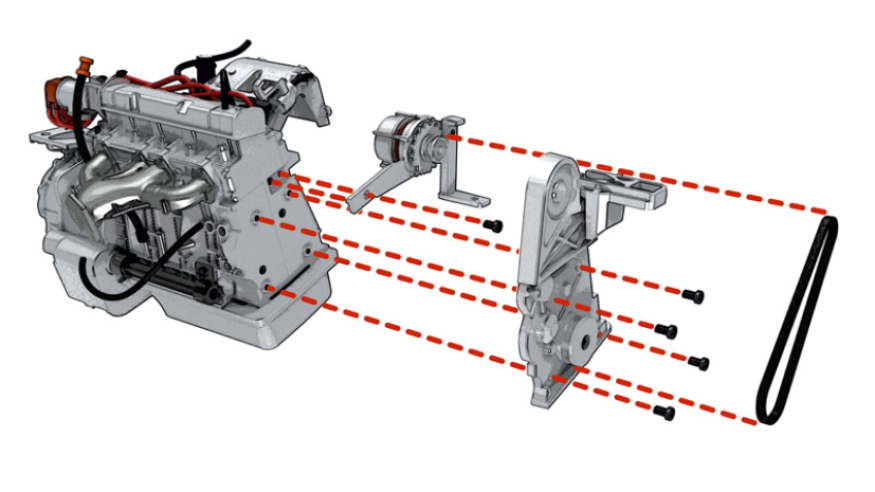

Assembly drawings

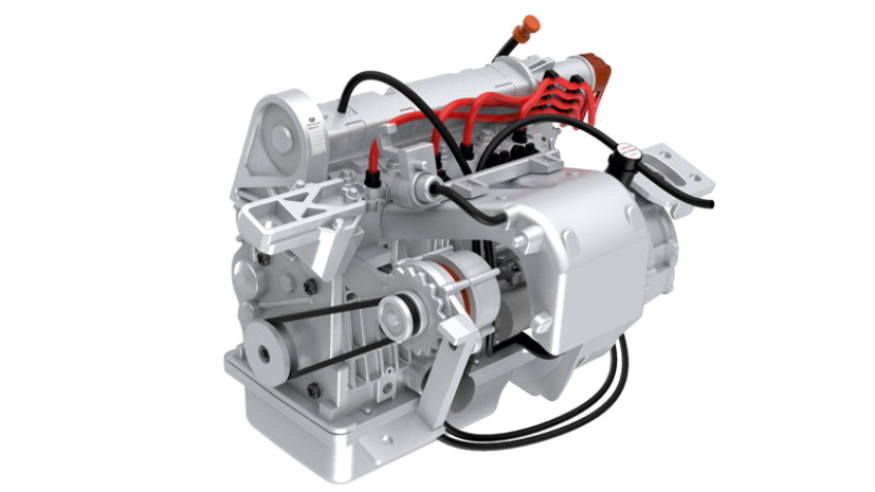

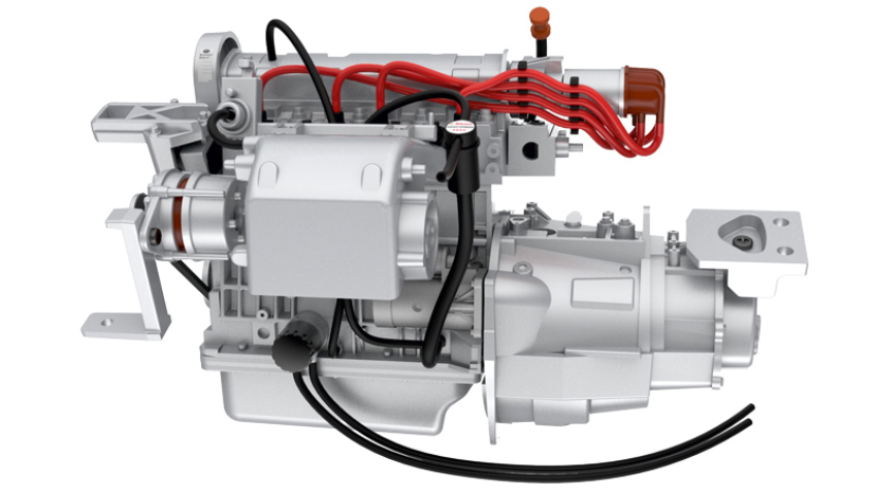

General view

Kit 10

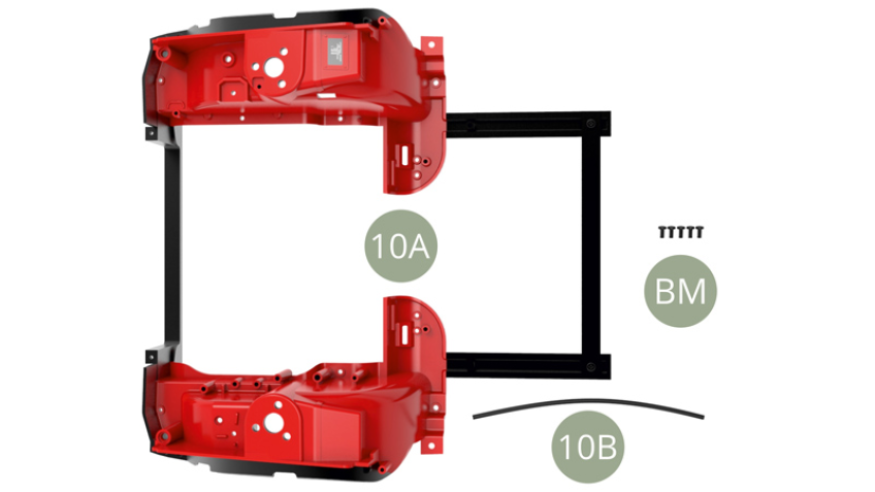

Parts of kit

10A Front wheel arc frame
10B Hose
BM M 2.0x4mm ( x5 )

10A Front wheel arc frame10B HoseBM M 2.0x4mm ( x5 )

Step 2

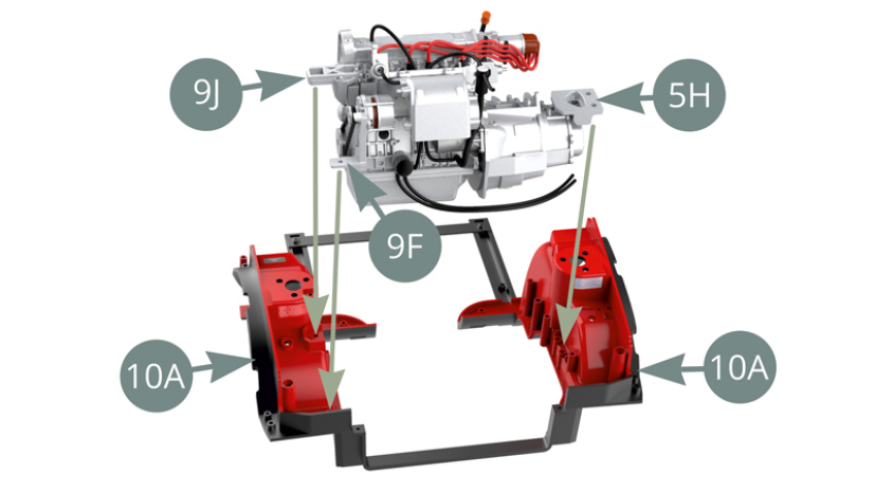

Fit Engine assembly , by 9J Engine mount , 9F Alternator bracket 2 and 5H Mount plate to 10A Front wheel arc frame.

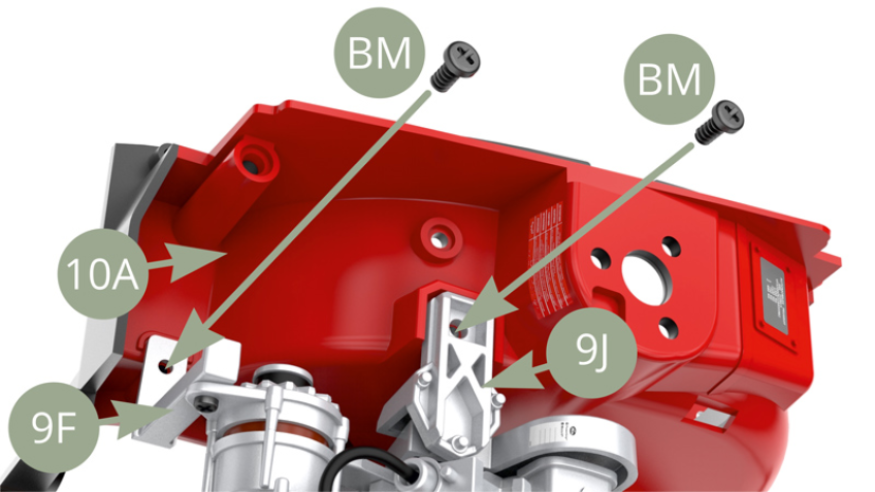

Fix 9J Engine mount and 9F Alternator bracket 2 to 10A Front wheel arc frame with two BM screws.

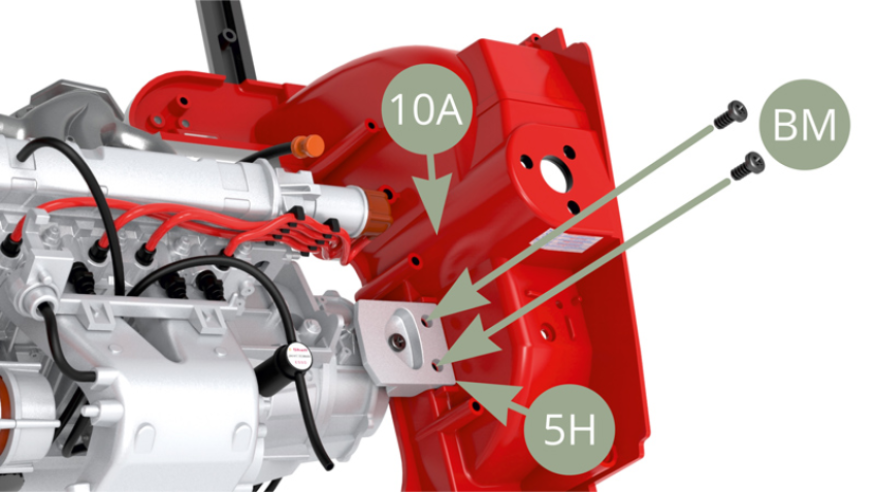

Fix 5H Mount plate to 10A Front wheel arc frame with two BM screws.

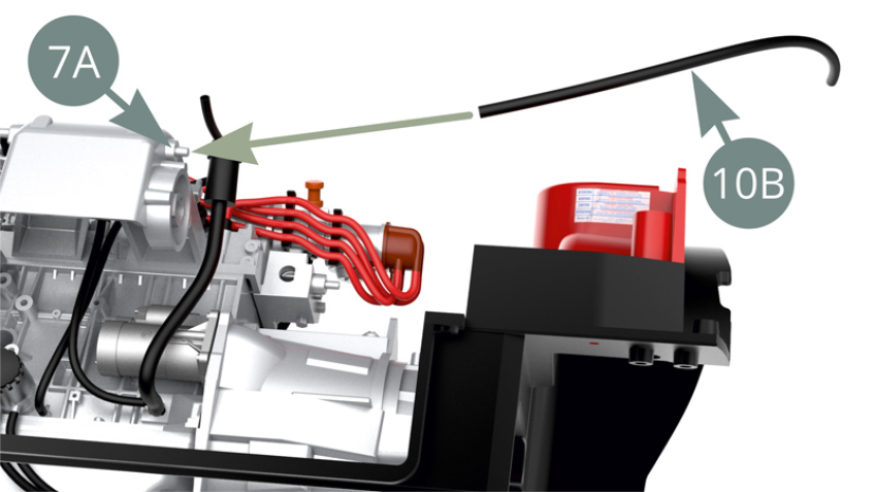

Fit 10B Hose to 7A Intake manifold nozzle.

Assembly drawings

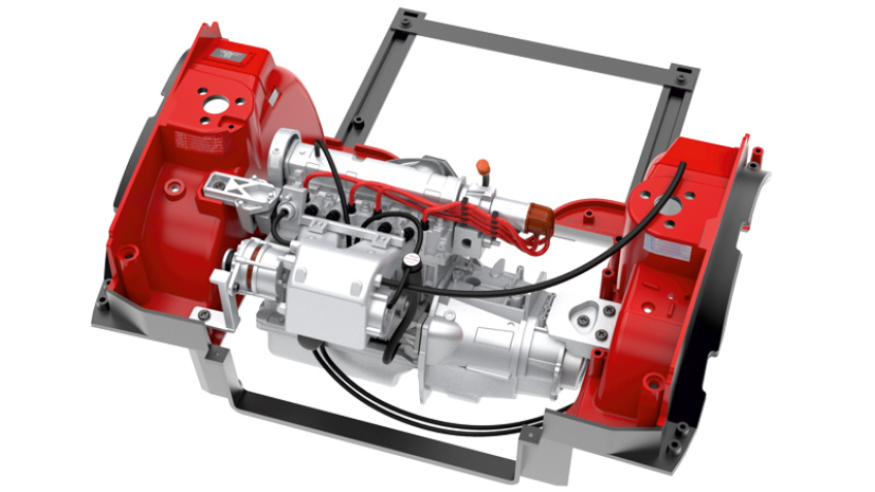

General view

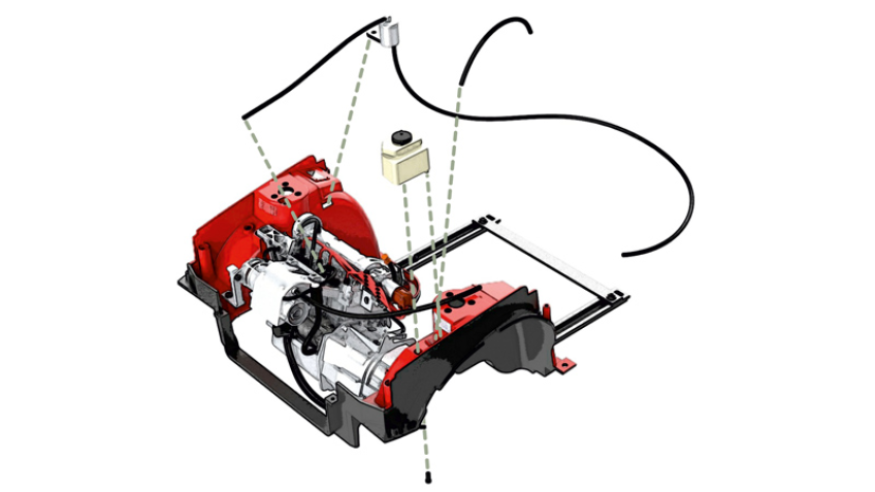

Kit 11

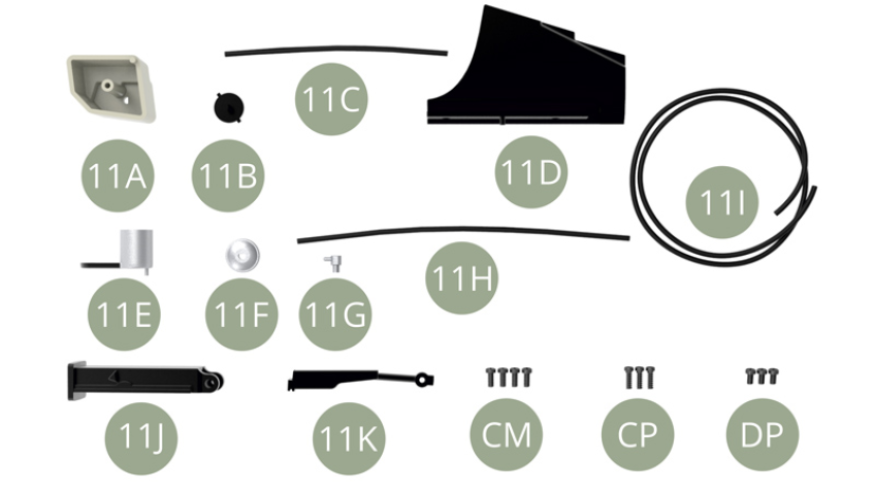

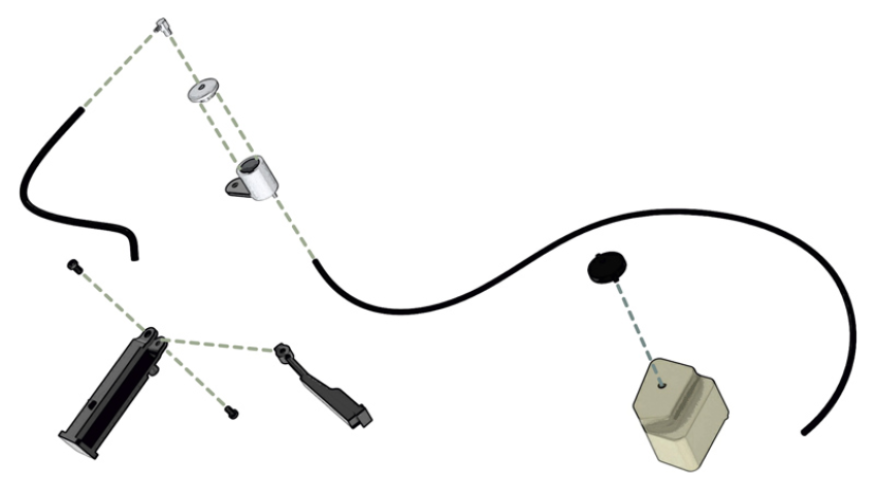

Parts of kit

11A Washer fluid reservoir
11B Cap
11C Washer fluid hose

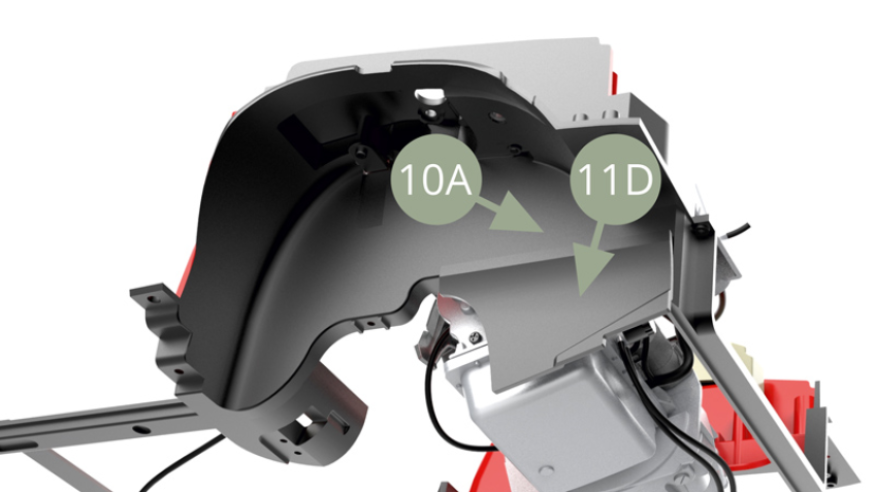

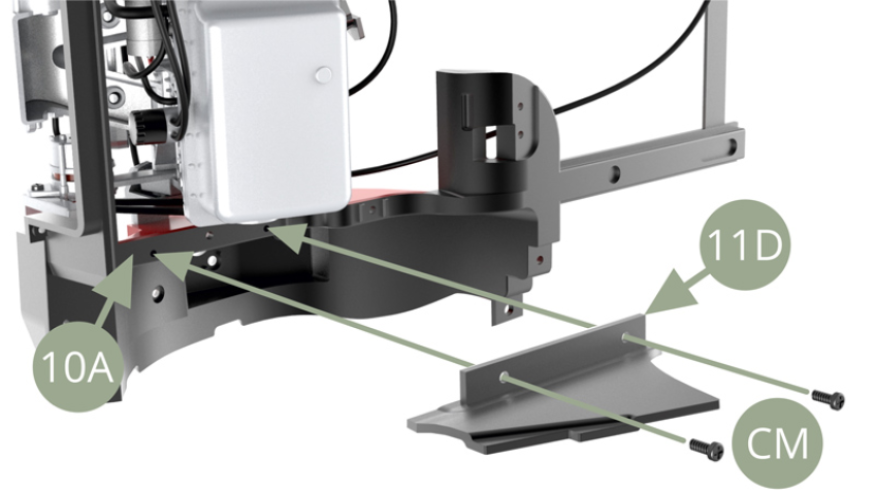

11D Cover
11E Fuel filter
11F Filter cap
11G Pipe connector
11H Fuel feed pipe
11I Fuel feed pipe

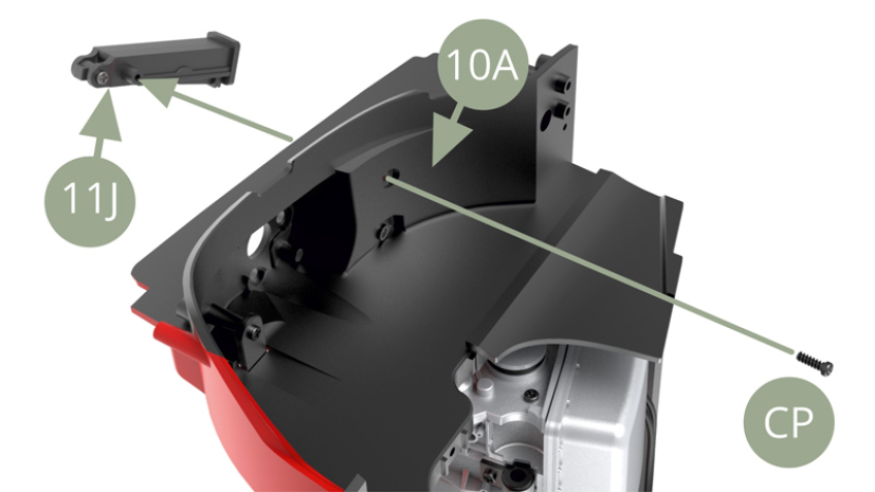

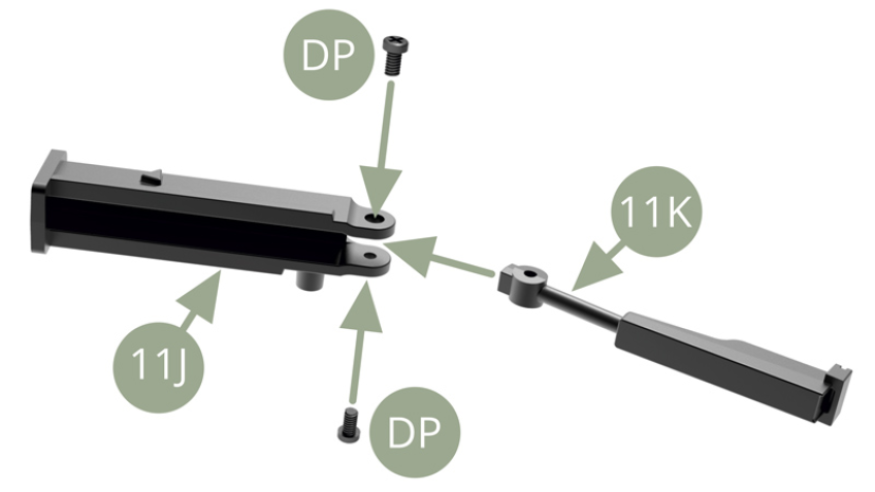

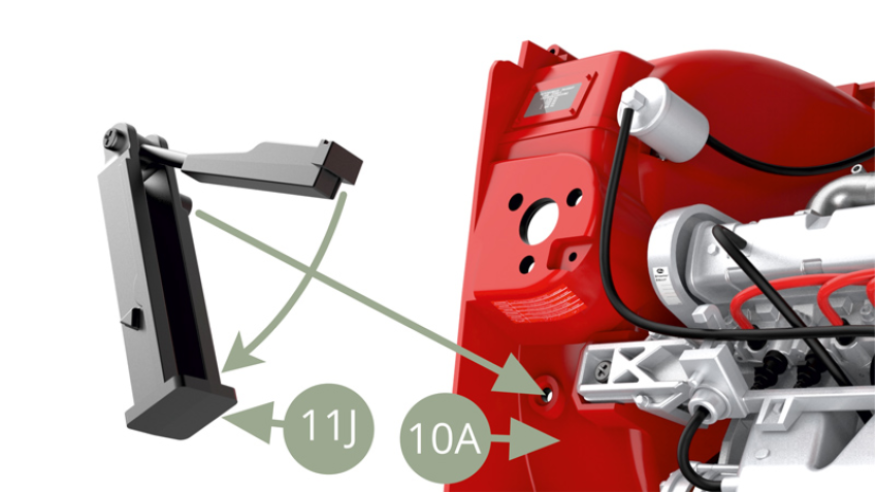

11J Jack body
11K Jack mechanism
CM M 1.7x4 mm ( x4 )
CP M 1.7x5 mm ( x3 )
DP M1.7x3 mm ( x3 )

11A Washer fluid reservoir11B Cap11C Washer fluid hose11D Cover11E Fuel filter11F Filter cap11G Pipe connector11H Fuel feed pipe11I Fuel feed pipe11J Jack body11K Jack mechanismCM M 1.7x4 mm ( x4 ) CP M 1.7x5 mm ( x3 ) DP M1.7x3 mm ( x3 )

Step 3

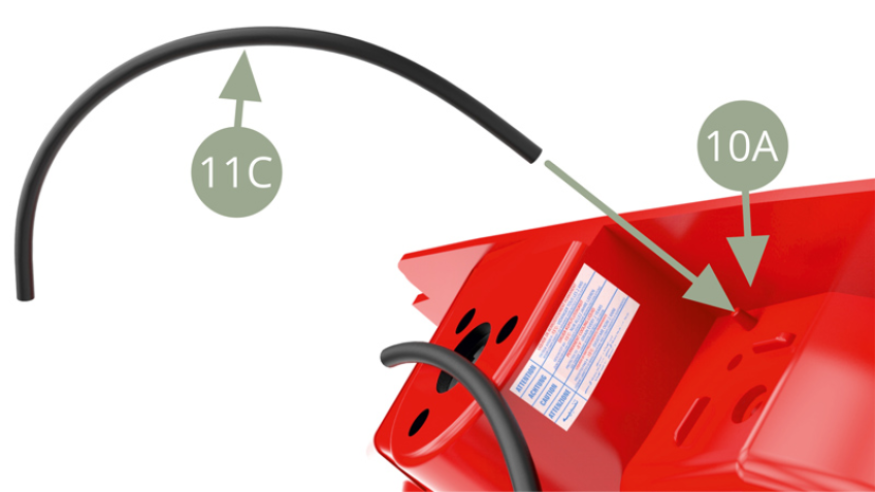

Fit 11C Washer fluid hose to connector on 10A Front wheel arc frame.

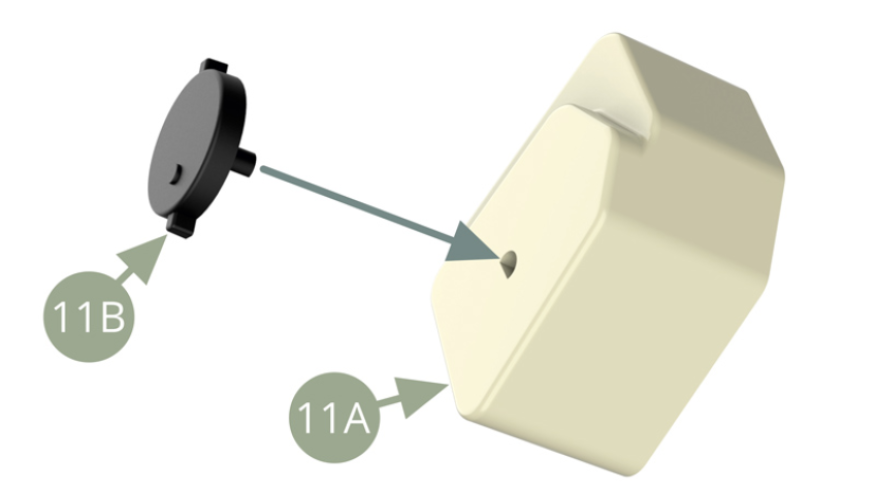

Fit 11B Cap to 11A Washer fluid reservoir.

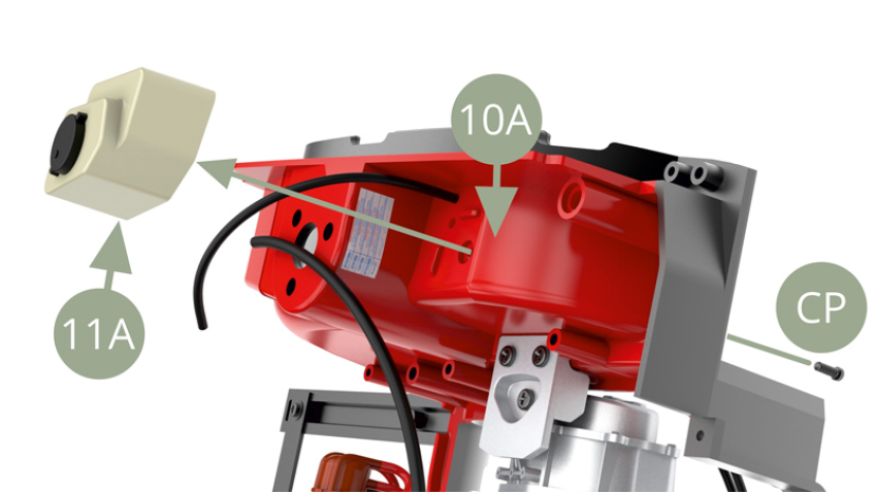

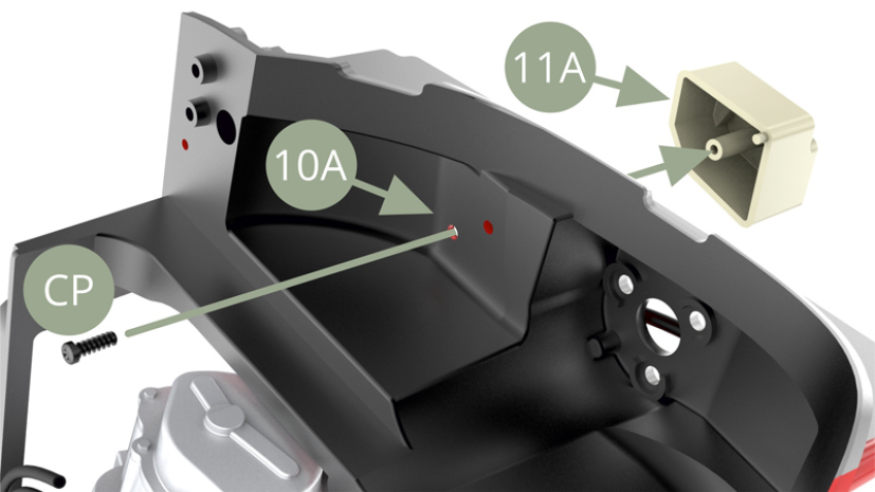

Fit 11A Washer fluid reservoir to 10A Front wheel arc frame and fix with CP screw from below ( follow bottom illustrations ).

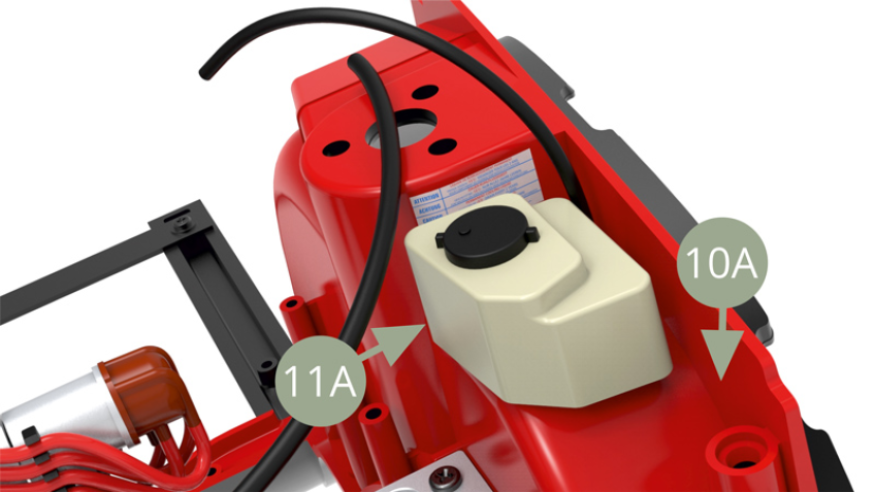

Installed 11A Washer fluid reservoir.

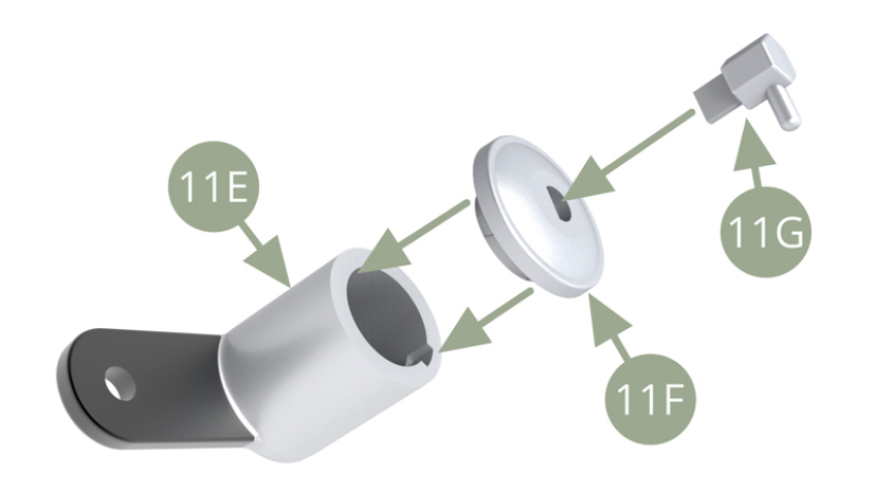

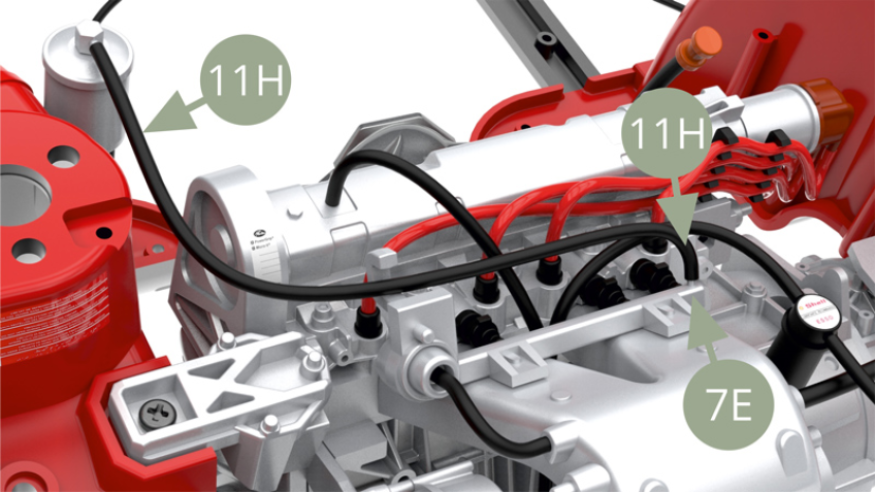

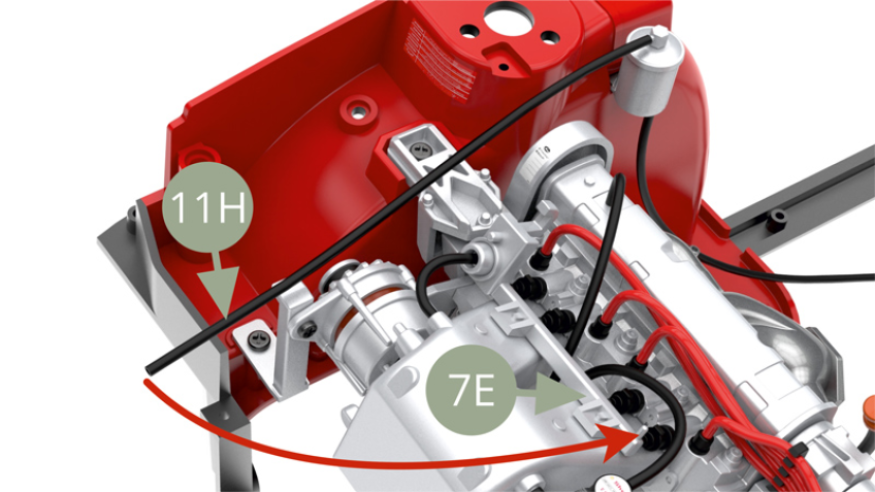

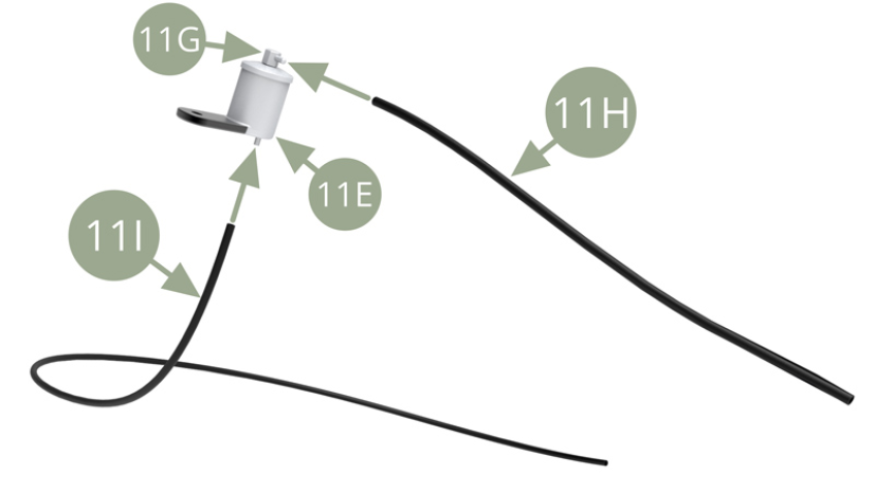

Fit 11F Filter cap to 11E Fuel filter and fit 11G Pipe connector to 11F Filter cap. Fit 11H Fuel feed pipe to 11G Pipe connector. Fit 11I Fuel feed pipe to 11E Fuel filter.

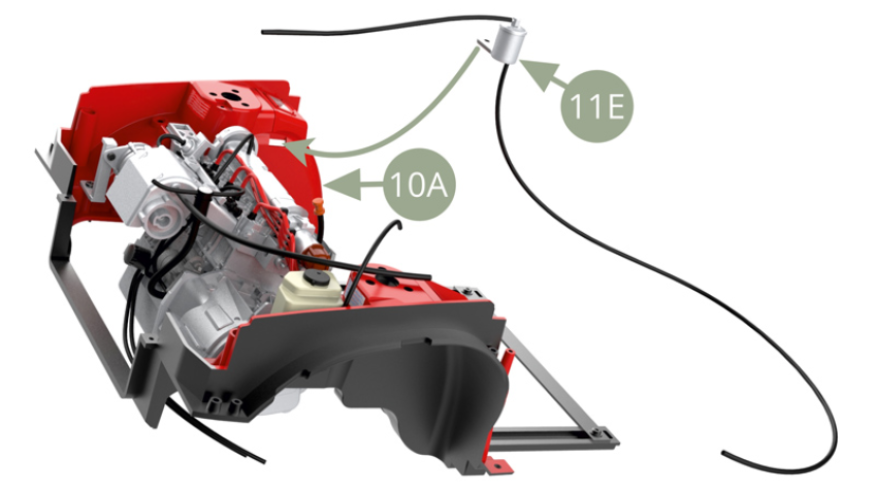

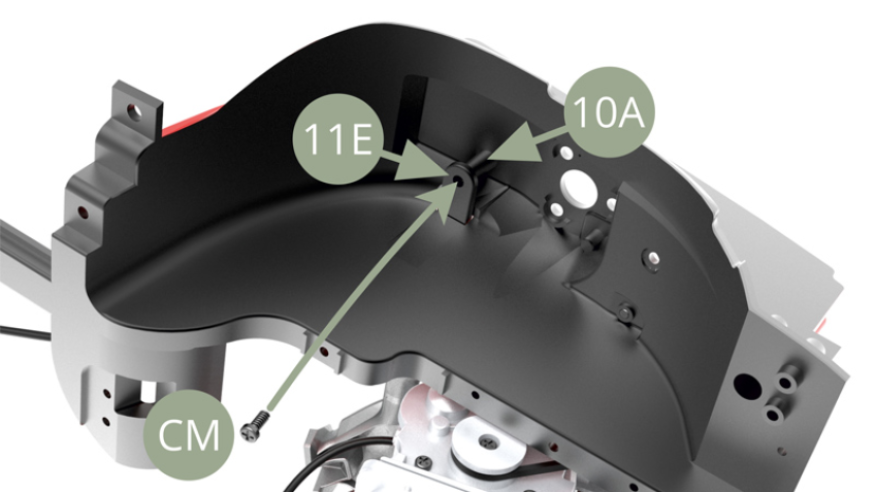

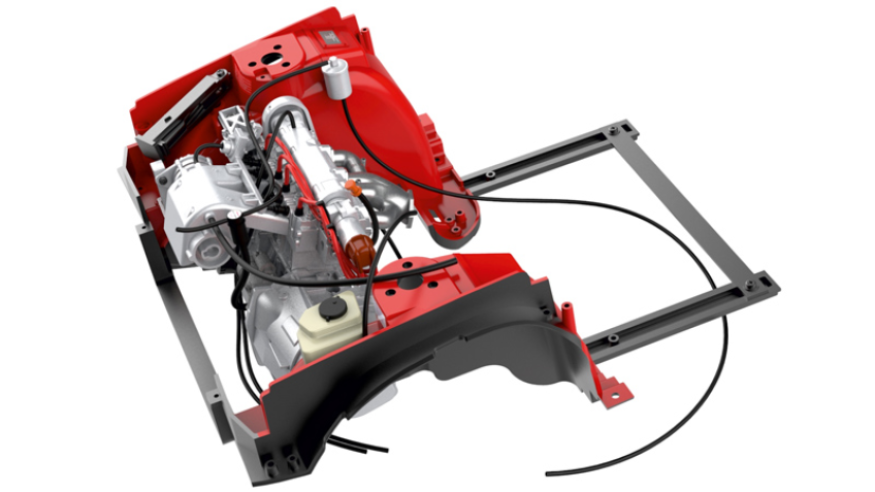

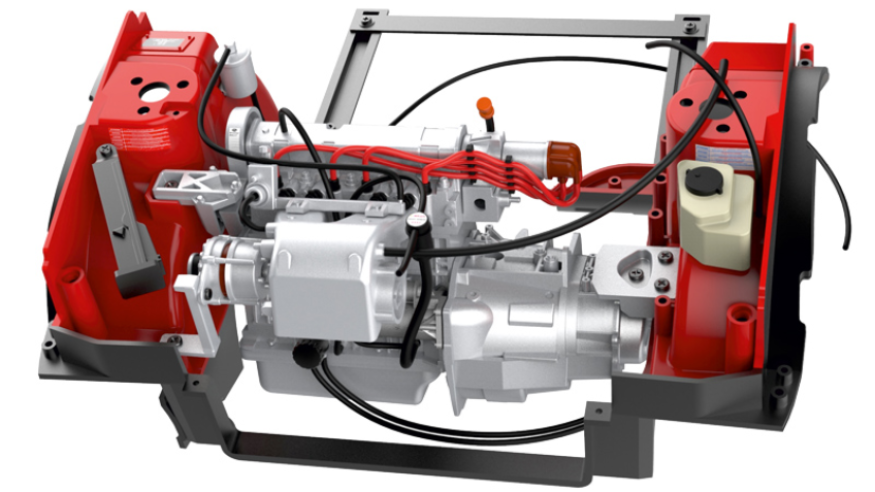

Fit 11E Fuel filter to the slot in 10A Front wheel arc frame , and fix to it with CM screw from below wheel arc ( follow top and bottom illustrations ).
